GDS® Audio™ Amplified Speaker with PTT Breakout Feature

SKU RAM-SPEAK-A02 Category Tag

$61.99

Features

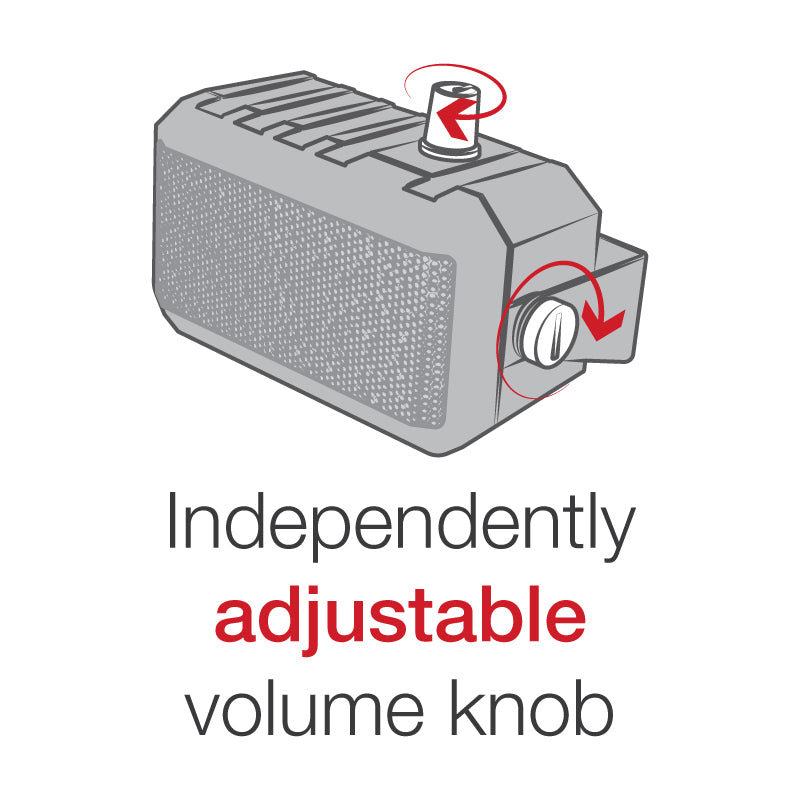

  • PTT-enabled amplification speaker with independent adjustable volume knob
  • Includes hardwire power input cable, audio input cable and audio output cable
  • 99db max volume level
  • Backed by a 3-year warranty

Description

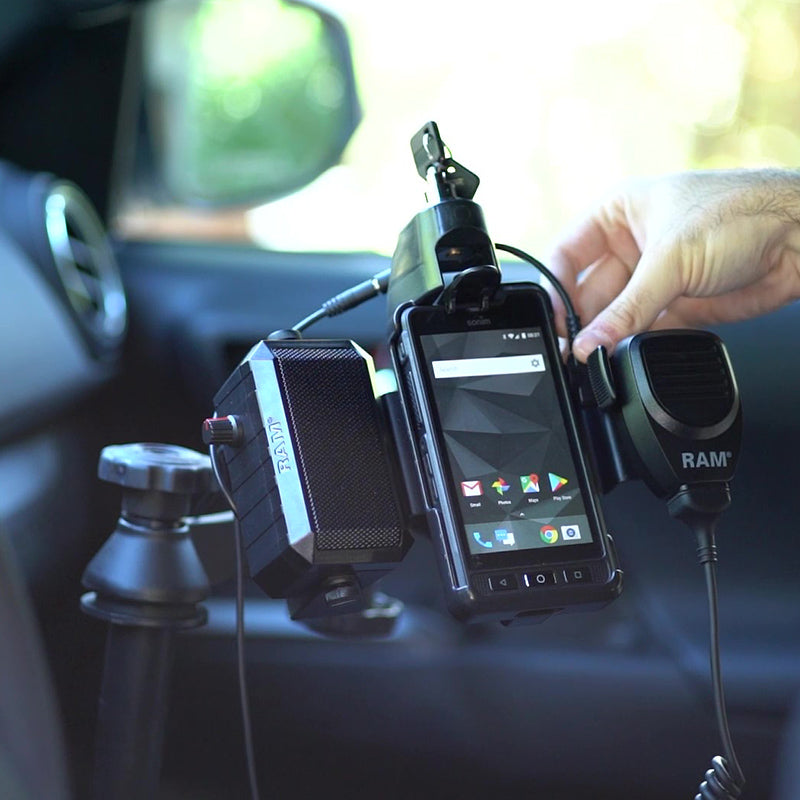

The GDS® Audio™ amplified audio breakout and speaker can be hardwired into the cab of your vehicle – with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS® Ecosystem™, the speaker can be mounted to any GDS® vehicle dock using the RAM® short bracket adapter or RAM® standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS® vehicle dock.

Additional information

Weight 0.94 lbs
Dimensions 3 × 3 × 1 in
hardware included

Mounting Bracket, (2) #8-32 x 5/8" Machine Screws, (2) #8-32 Nylock Nuts

packaging type

Box

weight

0.94 lb

warranty

3 year warranty

input connector

3.5mm TRRS connector, with a modified CTIA pin map for audio in/out

input cable length

1150mm long red/black power cable

operating temperature

-20°C to +80°C

regulatory

Over current protection, short circuit protection and over volatage protection

certifications

FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a

input voltage

9-26VDC

output cable length

150mm long audio cable with 3.5mm mono plug jack

storage temperature

-40°C to +85°C

power output

Peak Power: 10W, RMS Power: 8W

speaker specifications

Independently adjustable volume knob, Max volume level: 99dB, 8Ω / 10W rated speaker
