$39.99

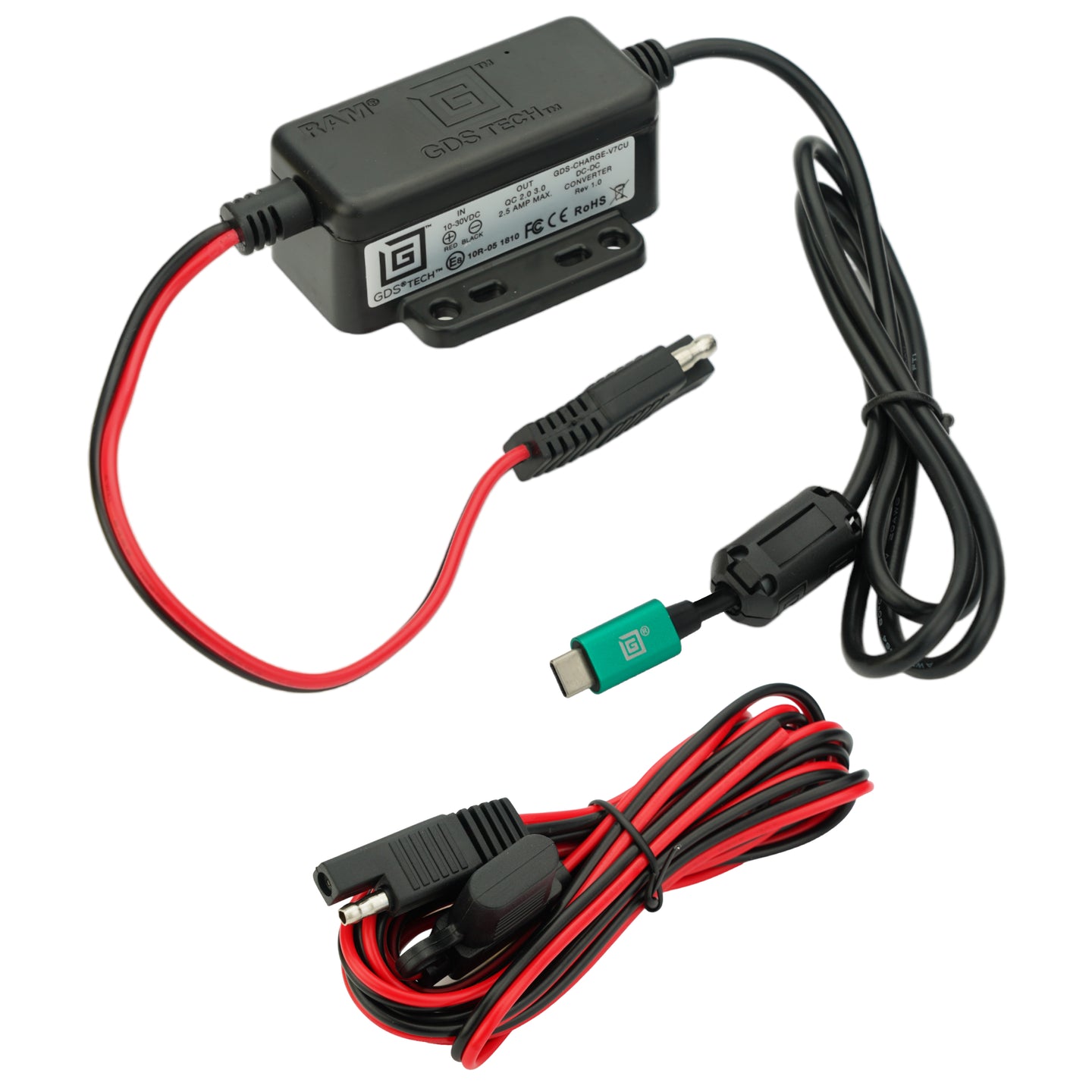

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery.
| Weight | 0.47 lbs |
|---|---|
| Dimensions | 8 × 4.75 × 1.25 in |
| packaging type | Poly Bag |
| weight | 0.47 lb |
| warranty | 3 year warranty |
| input connector | Bare Wire |
| input cable length | 2.5 Meters |
| operating temperature | -10°C to +70°C |
| regulatory | Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant |
| certifications | CE Certification, E-Mark Certification, RCM Certification, FCC Certification, UL 62368-1 Certificaton |
| input voltage | 10-30VDC |
| output voltage | 5.42-9VDC |
| output current | 2.5A max |
| output cable length | 1 Meter |
| storage temperature | -40°C to +70°C |
| output connector | USB Type-C Male |
