Description

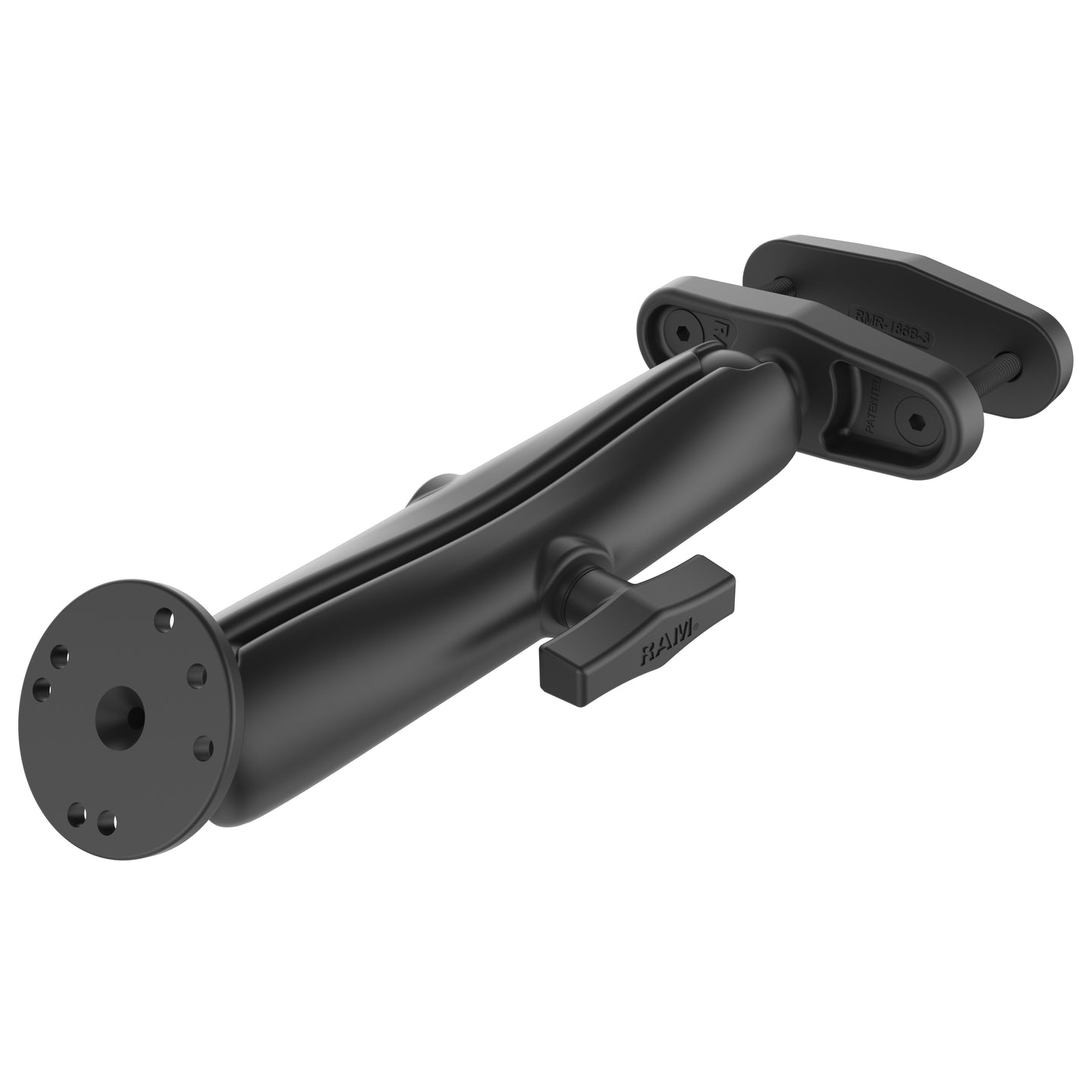

The RAM-101U-D-247-3 consists of a long length double socket arm, 2.5″ diameter round base with the universal AMPS hole pattern, and a 3″ maximum width square post clamp base.
$115.99
The RAM-101U-D-247-3 consists of a long length double socket arm, 2.5″ diameter round base with the universal AMPS hole pattern, and a 3″ maximum width square post clamp base.
| Weight | 2.35 lbs |
|---|---|
| Dimensions | 15 × 8 × 4 in |
| socket to socket length | 8" |
| hole pattern | 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter |
| ball size | C Size (1.5") |
| weight capacity | Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs |
| materials | Marine-grade aluminum |
| packaging type | Poly Bag |
| weight | 2.35 lb |
| components | RAM-247U-3, RAM-201U-D, RAM-202U |
| hardware included | (2) 5/16"-18 x 3" Machine Screws, (2) 5/16"-18 Nylock Nuts |
| clamp range | 3" max width |
