RAM® 4″ Square Post Clamp Mount with Round AMPS Plate – D Size

SKU RAM-D-101U-C-247-4 Category Tag

$148.49

Features

  • D Size ball with 2.5″ round plate connects to RAM® device holders containing the universal AMPS hole pattern

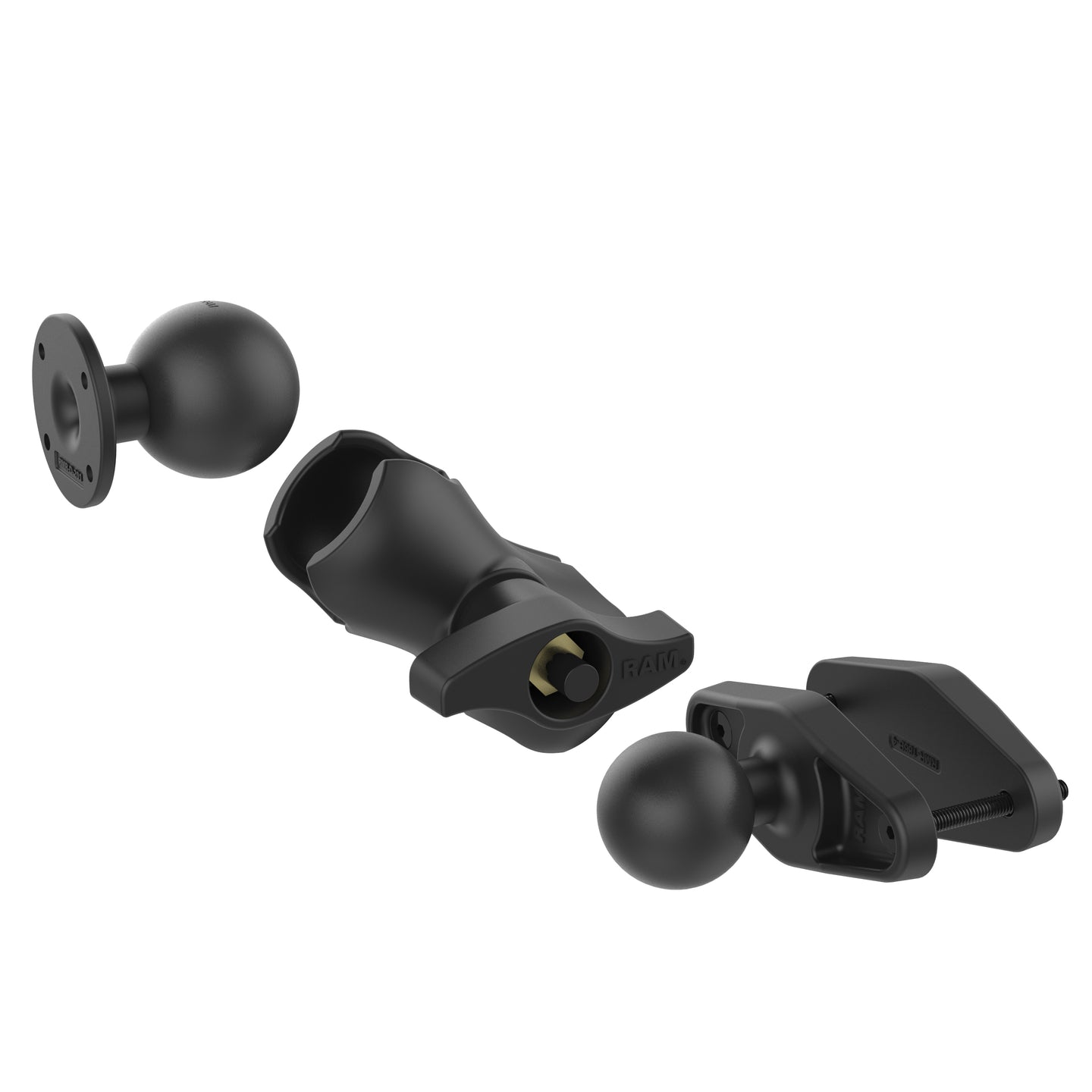

  • Includes 4″ clamping base for posts and a short length, D size RAM® double socket arm with an overall length of 5.1″ and socket-to-socket length of 3.6″; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Description

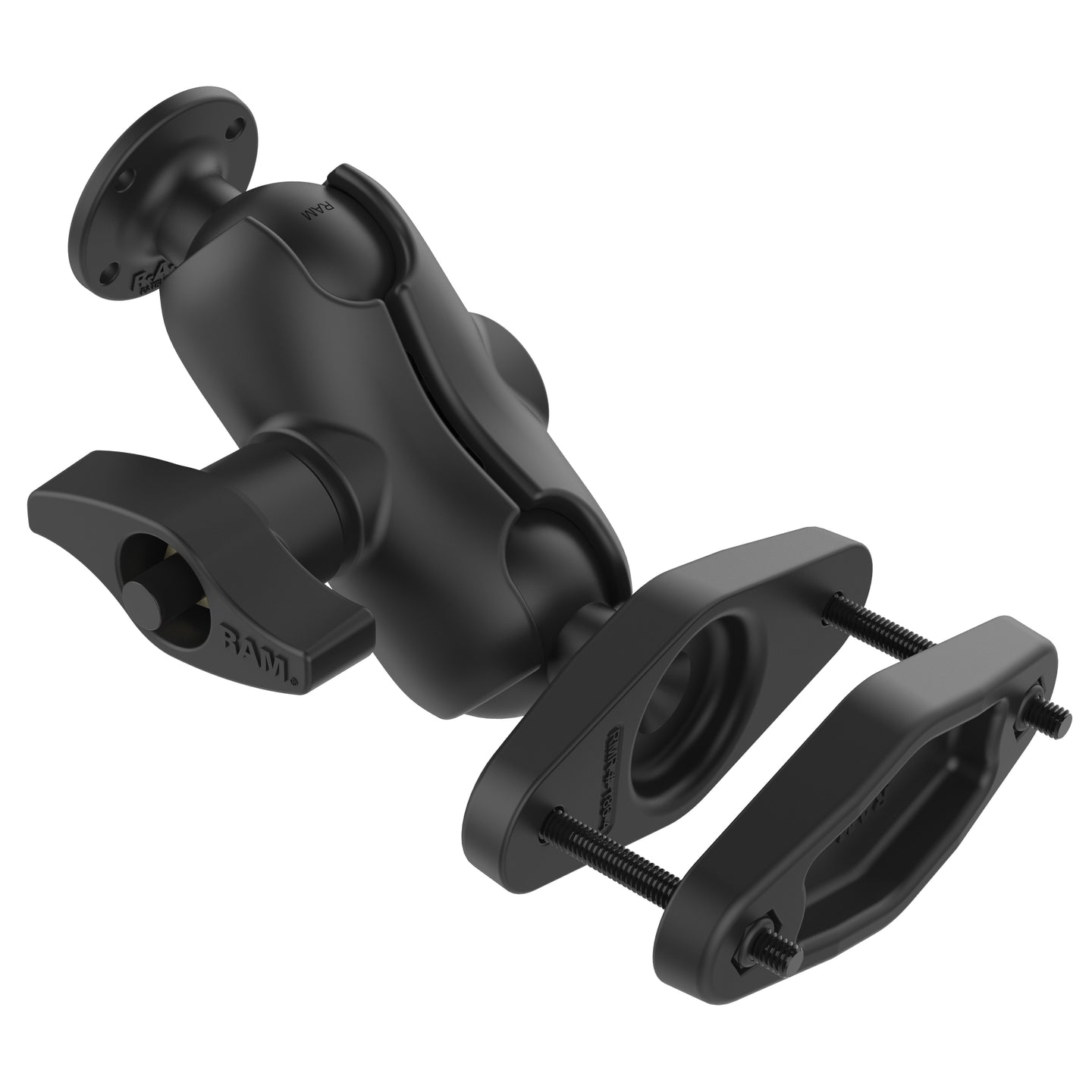

This ideal forklift mount consists of a D size short double socket arm, a round 2.5″ diameter round D size base with the universal AMPS hole pattern and 4″ clamp base for square post mounting on forklifts. The clamp base will wrap around a maximum width of 4″ and is tightened by screwing the two plates together with the included nuts and bolts. RAM® Mounts ball & socket technology dampens shock and vibration, as well as allows for almost infinite adjustment for perfect viewing angles. This D size forklift mount is designed for heavy duty monitor mounting for forklifts, as well as rugged tablets which could be paired with accessory brackets to support keyboards and other peripherals.

Additional information

Weight 3.65 lbs
Dimensions 7 × 4 × 4 in
hardware included

(2) 5/16"-18 x 3" Machine Screws, (2) 5/16"-18 Nylock Nuts

socket to socket length

3.6"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

plate size

2.5" Diameter

ball size

D Size (2.25")

weight capacity

Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

weight

3.57 lb

components

RAM-D-254U, RAM-D-201U-C, RAM-D-247U-4-IN1

clamp range

4" max width
