RAM® ATV/UTV Rail Mount with Garmin VIRB™ Camera Adapter

SKU RAM-B-231Z-2-GA63U Category Tag

$49.99

Description

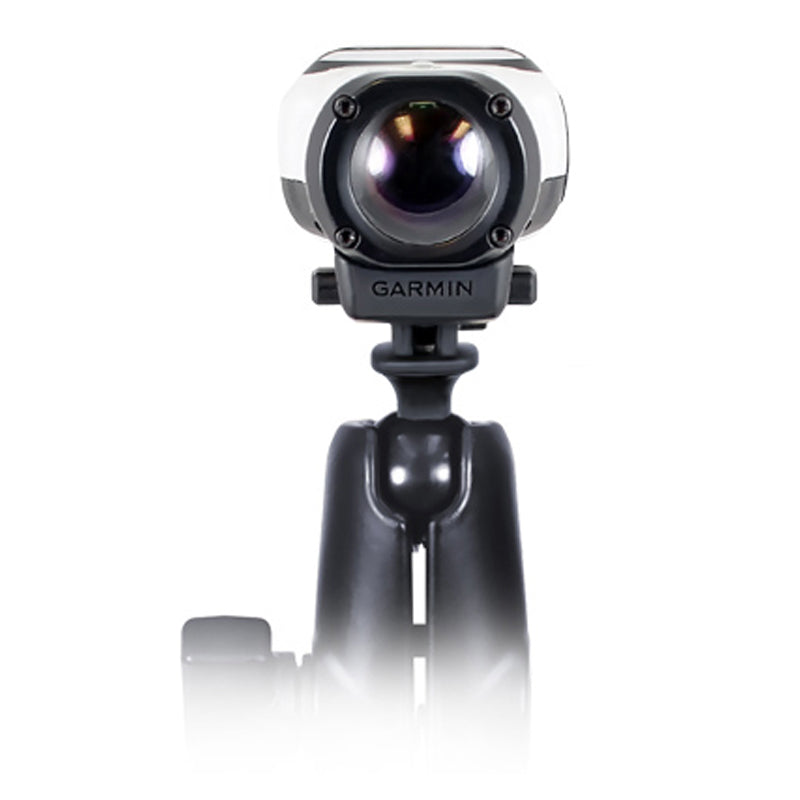

The RAM-B-231Z-2-GA63U consists of a steel strap base, u-bolt bases, double socket arm and Garmin VIRB™ camera adapter. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV’s using the included hardware. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.

Additional information

Weight 0.67 lbs
Dimensions 12 × 6 × 3 in
hardware included

Assembly Hardware, (1) Strap Clamp Adapter, (2) 1/4"-20 x 1" Machine Screws, (2) 1/4"-20 Nylock Nuts, (1) Zinc Worm Drive Strap Clamp, (1) 6" Rubber Strip, (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (2) Rubber Caps, (1) U-Bolt Spacer

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs, Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum, High strength composite

packaging type

Poly Bag

weight

0.67 lb

components

RAM-B-202U-GA63, RAM-B-201U, RAM-B-231Z-2U

clamp range

U-Bolt: .5" – 1.25" diameter, Strap Clamp: 1.57" – 3.15" diameter
