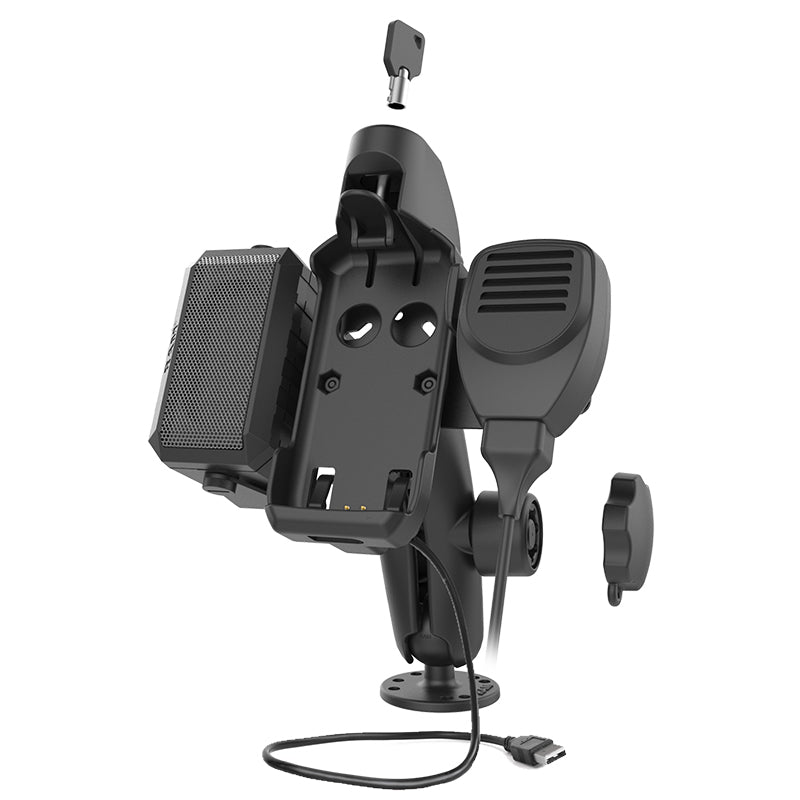

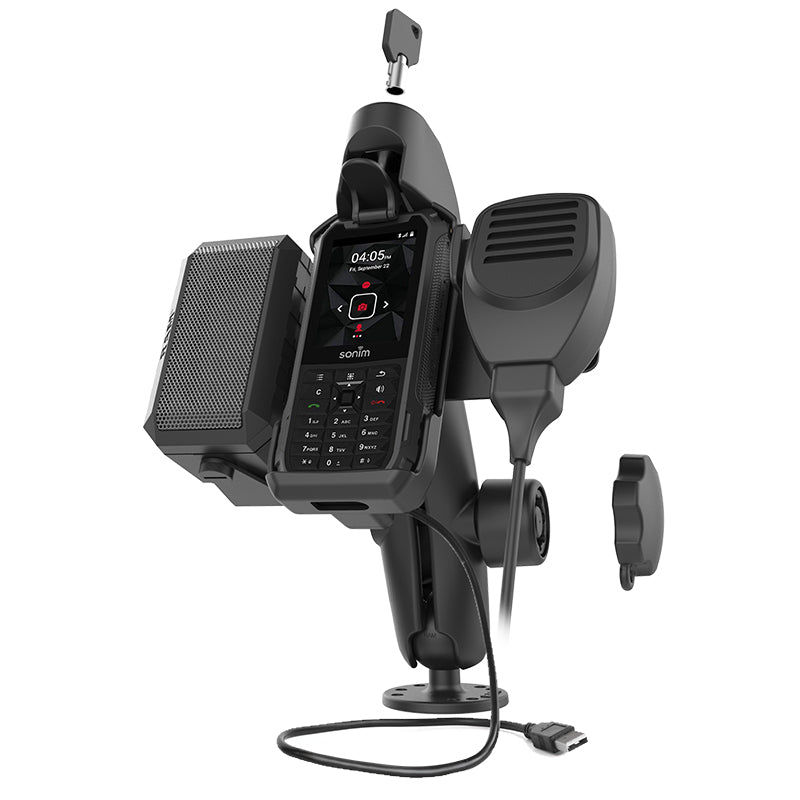

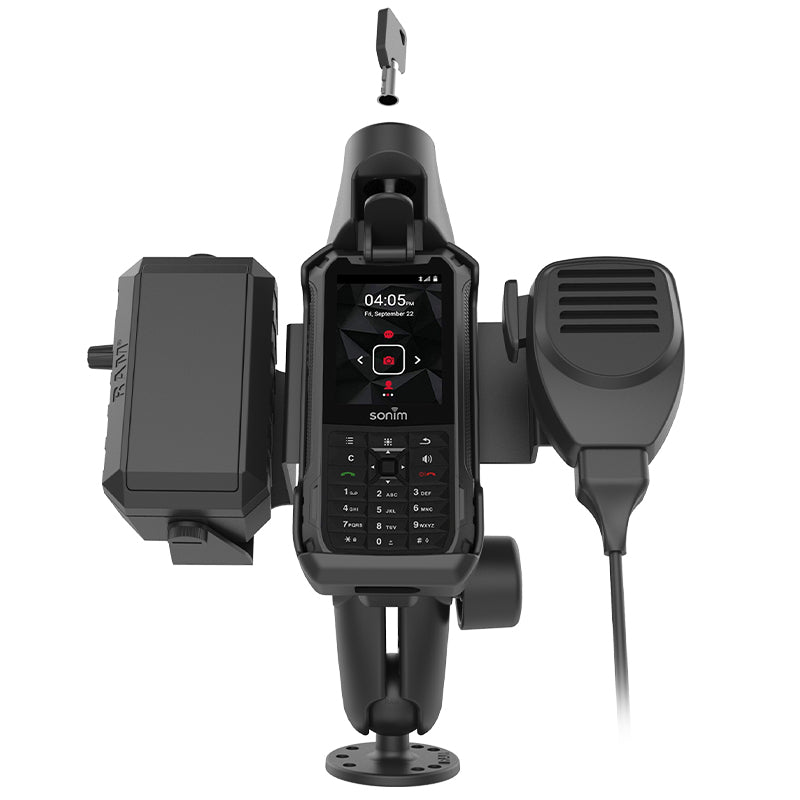

RAM® Double Ball Mount for Sonim XP5s with Speaker & Hardwire Bundle

SKU RAM-138-S-SNM1PL-V7B1U Category Tag

$393.99

Features

  • Bundle for Sonim XP5s includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
  • Spring-loaded, powered RAM® EZ-Roll’r™ style form-fit cradle provides a perfect fit for your device without a case while keeping the device charged
  • Key lock and RAM® Pin-Lock™ for theft deterrence
  • RAM® Components backed by lifetime warranty; cradle backed by a 3-year warranty

Description

This Sonim XP5s bundle includes the RAM® EZ-Roll’r™ Powered Key Locking Cradle for Sonim XP5s, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5s and keeps your peripherals together and connected as one unit. The powered cradle features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim usit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.

Additional information

Weight 4.15 lbs
Dimensions 16 × 12 × 4 in
socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum, High strength composite, Powder-Coated Steel

packaging type

Poly Bag

weight

4.15 lb

components

RAM-HOL-SNM1PLU, RAM-101-MIC3U, RAM-138U, RAP-S-KNOB5U, RAP-CAB-SNM1U, RAM-GDS-CHARGE-V7B1U

hardware included

Assembly Hardware, (2) Keys for Holder, (1) Key for Locking Knob, (1) 10-pin to 3.5 Audio Adapter Cable, (1) Modular Hardwire Charger

input voltage

10-30VDC

output voltage

5-9VDC*

output current

2.5A max

input connector

Charger: Female USB Type A

input cable length

1.2 Meters including 2 Pole Flat Marine Connector

operating temperature

-10°C to +70°C

storage temperature

-40°C to +70°C

regulatory

Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC

certifications

E-Mark Certification, RCM Certification, IEC/UL 62368-1

warranty

3 year warranty

output cable length

.2 Meters

speaker specifications

Independently adjustable volume knob, Max volume level: 100dB, 8Ω / 10W rated speaker
