$42.99

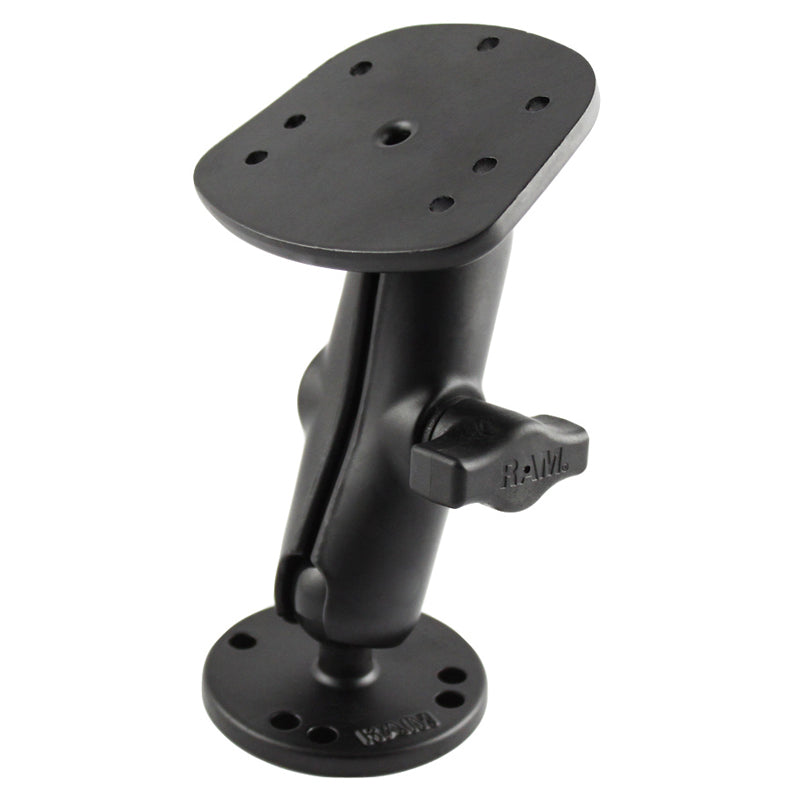

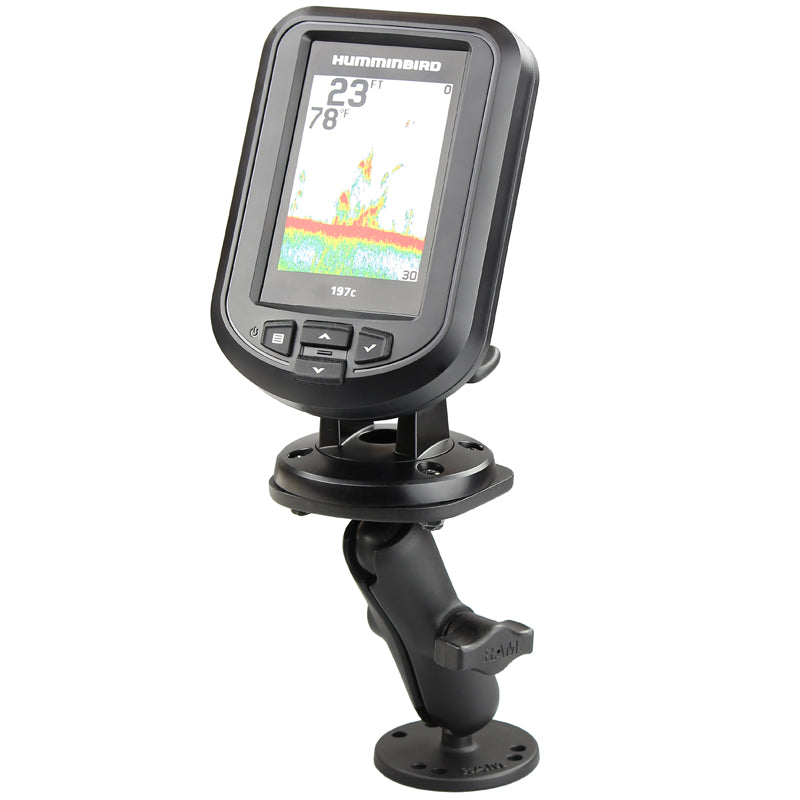

The RAM-B-107-1U, powder coated marine grade aluminum mount, consists of a double socket arm, one 2.5″ diameter round base and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a 1″ diameter patented rubber ball and socket system that has adjustment points at the cradle base and bottom base. With a twist of the arm knob, you can move the marine mount to your optimum viewing position.
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 12 × 6 × 3 in |
| product dimensions | Overall Height: 5" |
| socket to socket length | 3" |
| hole pattern | 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter, See Drawing |
| plate size | Top Plate: 3.29" x 2.85", Bottom Plate: 2.5" Diameter |
| ball size | B Size (1") |
| weight capacity | Standard Use: 2 lbs, Heavy-Duty Use: 1 lb |
| materials | Marine-grade aluminum |
| packaging type | Poly Bag |
| weight | 0.62 lb |
| components | RAM-B-107-1BU, RAM-B-201U, RAM-B-202U |
