RAM® Handlebar U-Bolt Double Ball Mount – B Size Medium Stainless Steel

SKU RAM-B-149U Category Tag

$43.99

Description

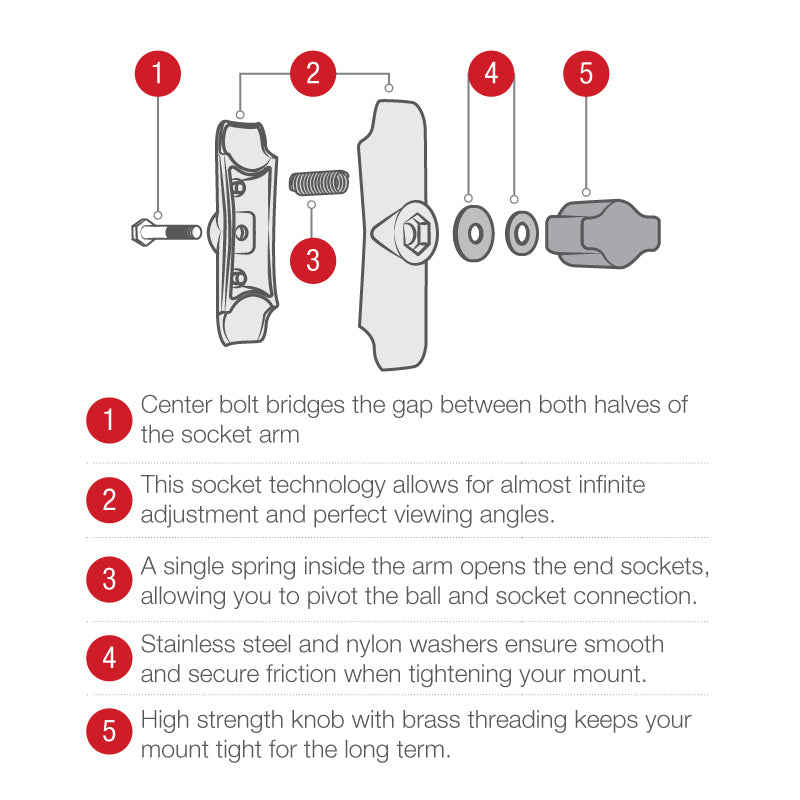

The RAM-B-149U consists of a stainless steel u-bolt base, double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Additional information

Weight 0.54 lbs
Dimensions 12 × 6 × 3 in
hardware included

(1) 1/4"-20 U-Bolt for .5" – 1" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs, Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

weight

0.54 lb

components

RAM-B-231U, RAM-B-201U, RAM-B-238U

clamp range

.5" – 1" diameter
