RAM® Handlebar U-Bolt Double Ball Mount – B Size Medium

SKU RAM-B-149ZU Category Tag

$41.99

Features

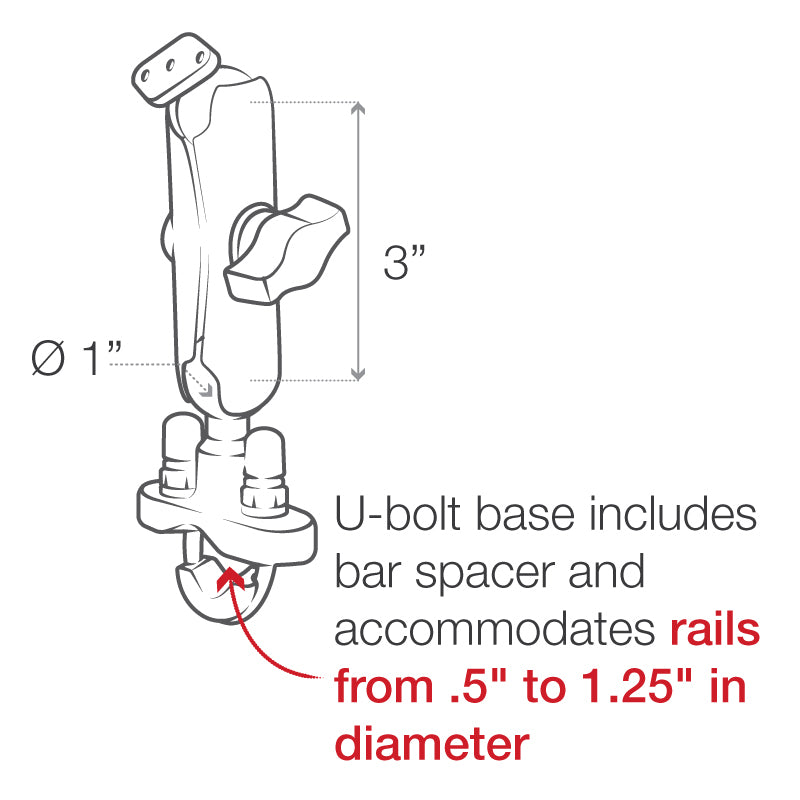

  • Includes zinc-coated U-bolt base that accommodates rails from .5″ to 1.25″ in diameter, medium length B size RAM® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders

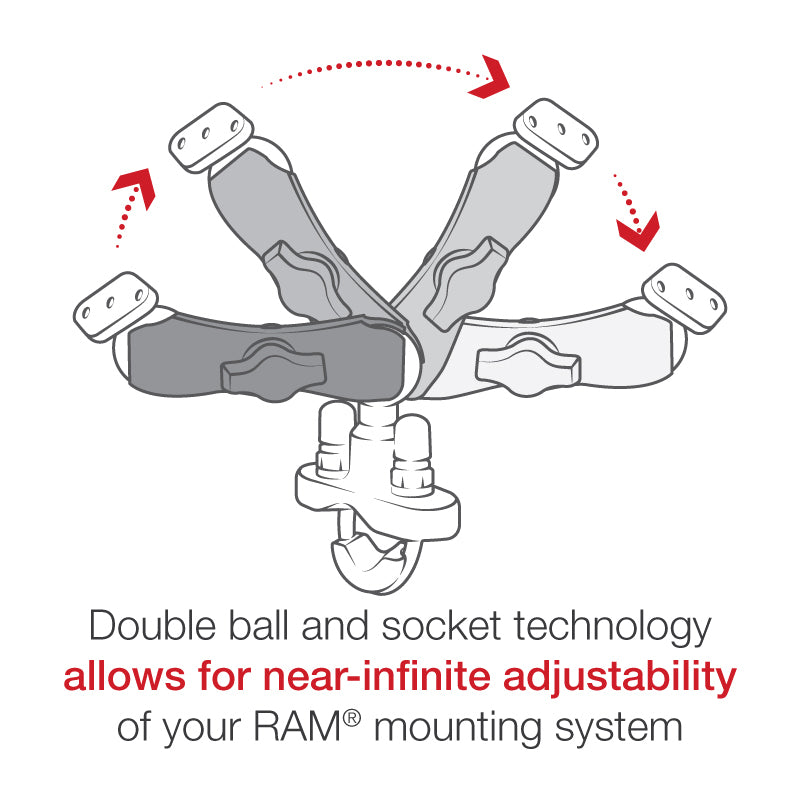

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium
RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium
RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium
RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium
RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium

Description

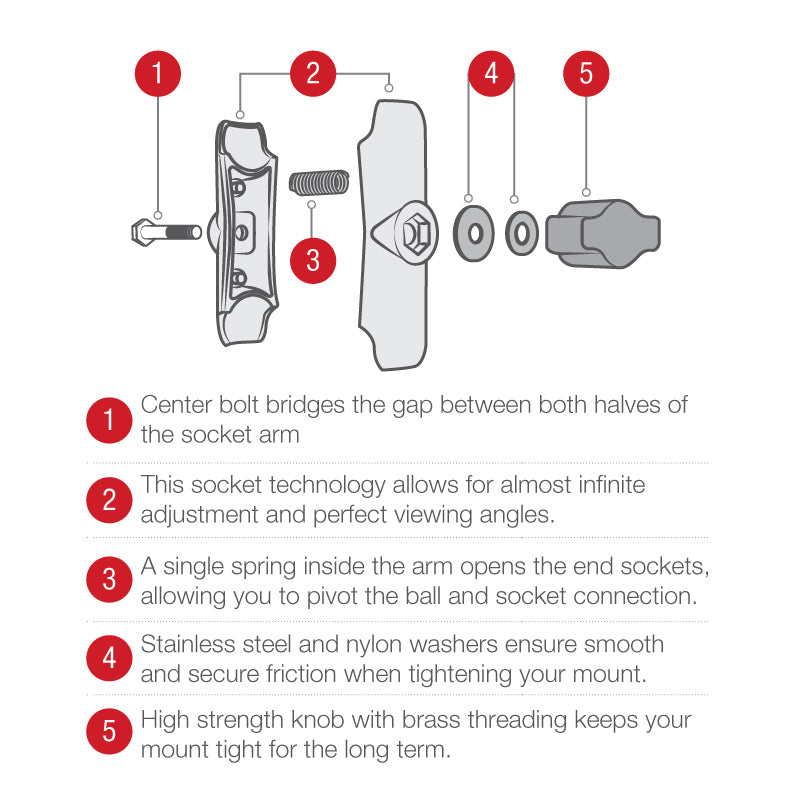

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® components. Included is hardware that will accommodate rails from .5″ to 1.25″ in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.

Additional information

Weight 0.65 lbs
Dimensions 5.25 × 4 × 1.6 in
hardware included

(1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer
socket to socket length

3"
hole pattern

2-Hole AMPS: 1.912"
plate size

2.43" x 1.31"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
weight

0.64 lb
components

RAM-B-231ZU, RAM-B-201U, RAM-B-238U
clamp range

.5" – 1.25" diameter
