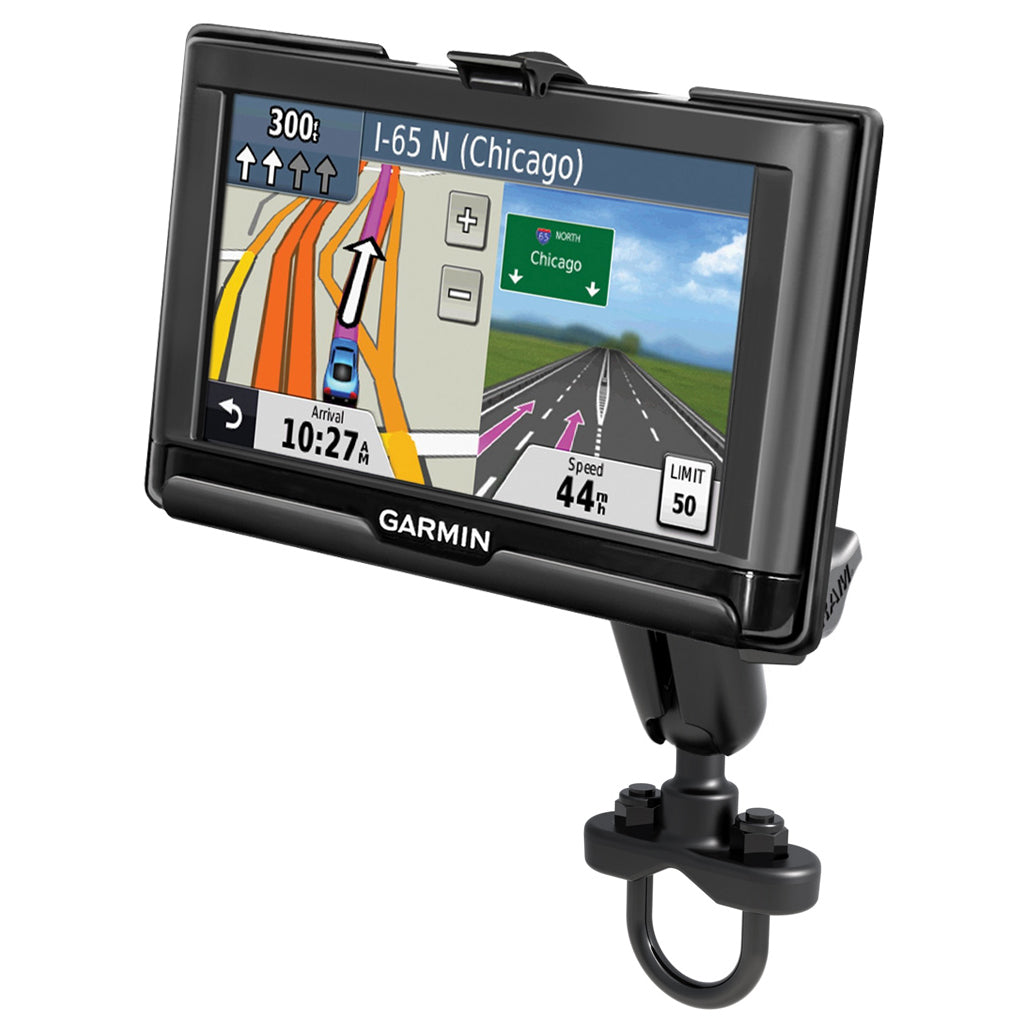

RAM® Handlebar U-Bolt Mount for Garmin nuvi 52, 54, 55, 56, 57, & 58

SKU RAM-B-149Z-GA55U Category Tag

$56.49

Description

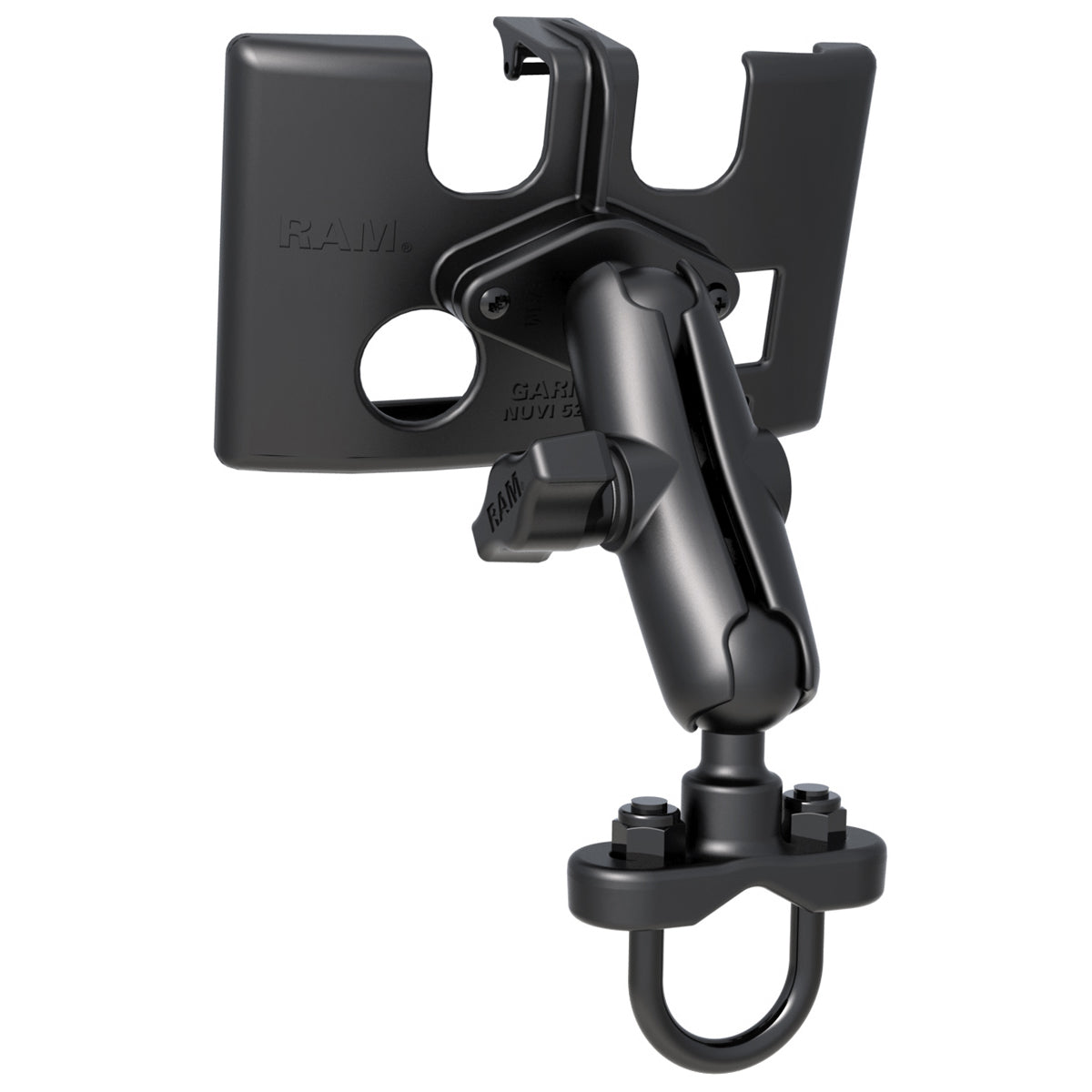

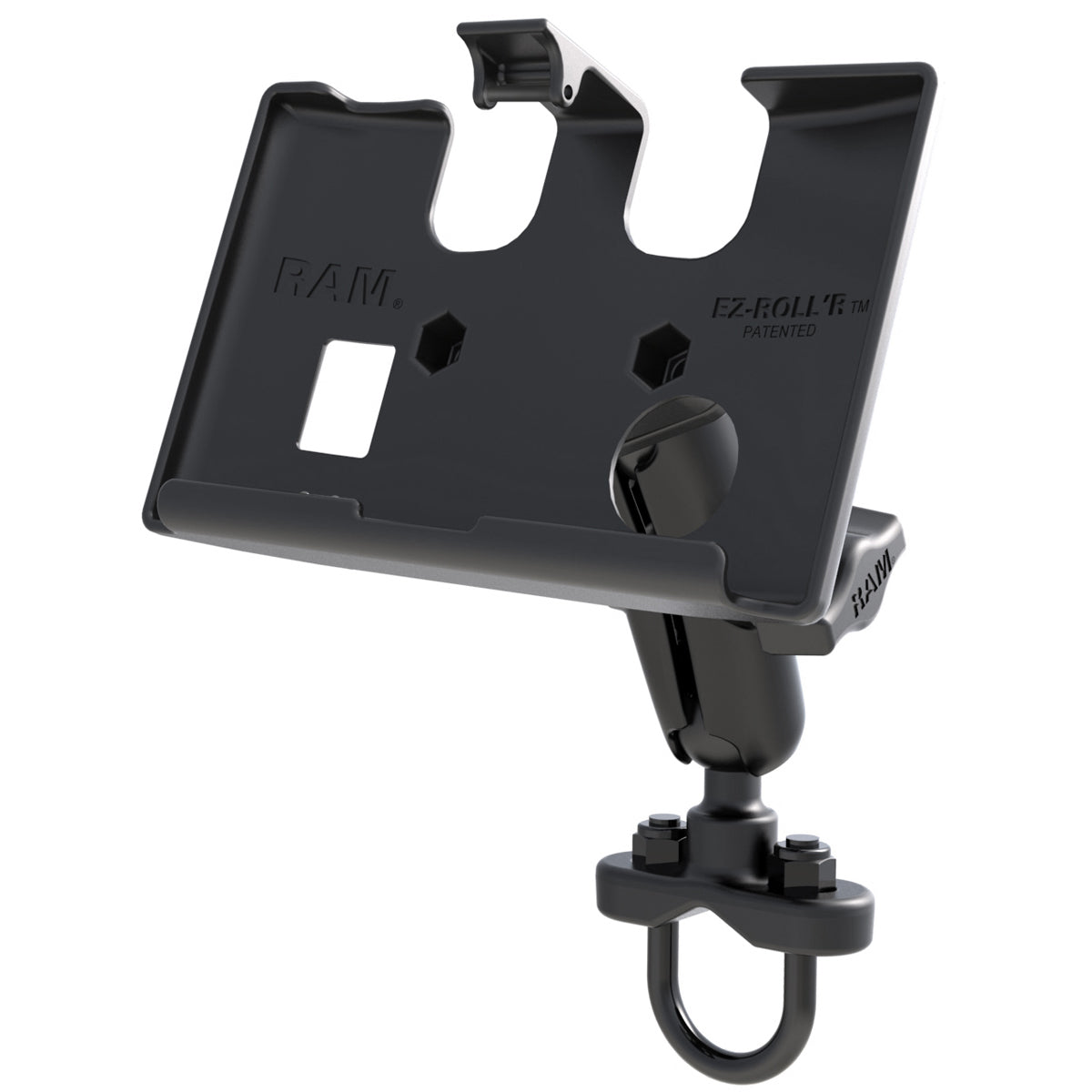

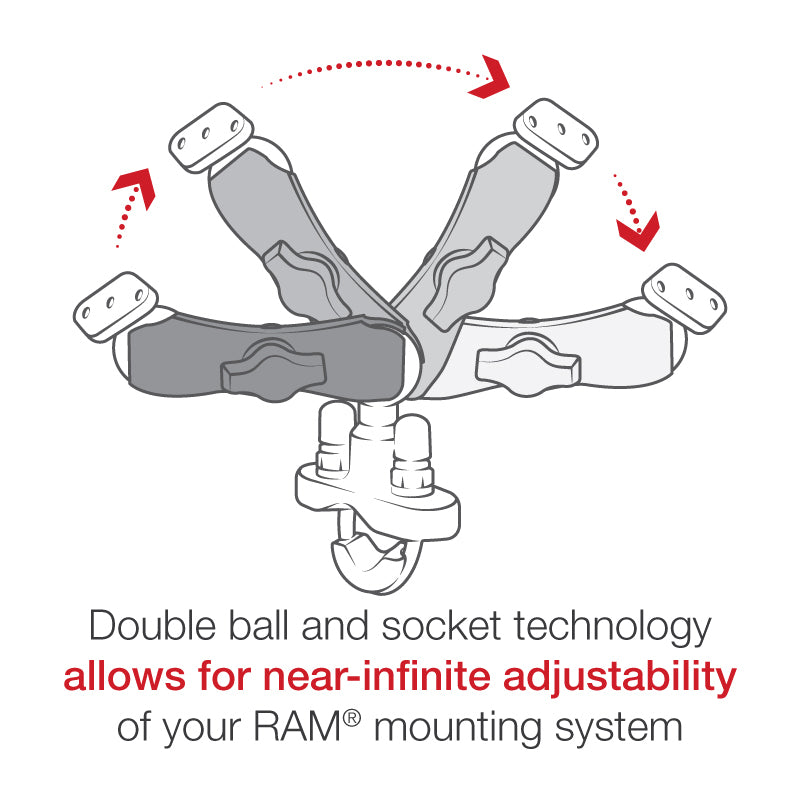

The RAM-B-149Z-GA55U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Rino mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50″ to 1.25″ in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5″.

Additional information

Weight 0.81 lbs
Dimensions 12 × 6 × 3 in
hardware included

Assembly Hardware, (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (1) 1/4"-20 U-Bolt for 1" – 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs, Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum, High strength composite

packaging type

Poly Bag

weight

0.81 lb

components

RAM-HOL-GA55U, RAM-B-149ZU

clamp range

.5" – 1.25" diameter
