RAM® Handlebar U-Bolt Mount for Garmin Rino 520, 520HCx, 530 & 530HCx

SKU RAM-B-149-GA20 Category Tag

$57.49

Description

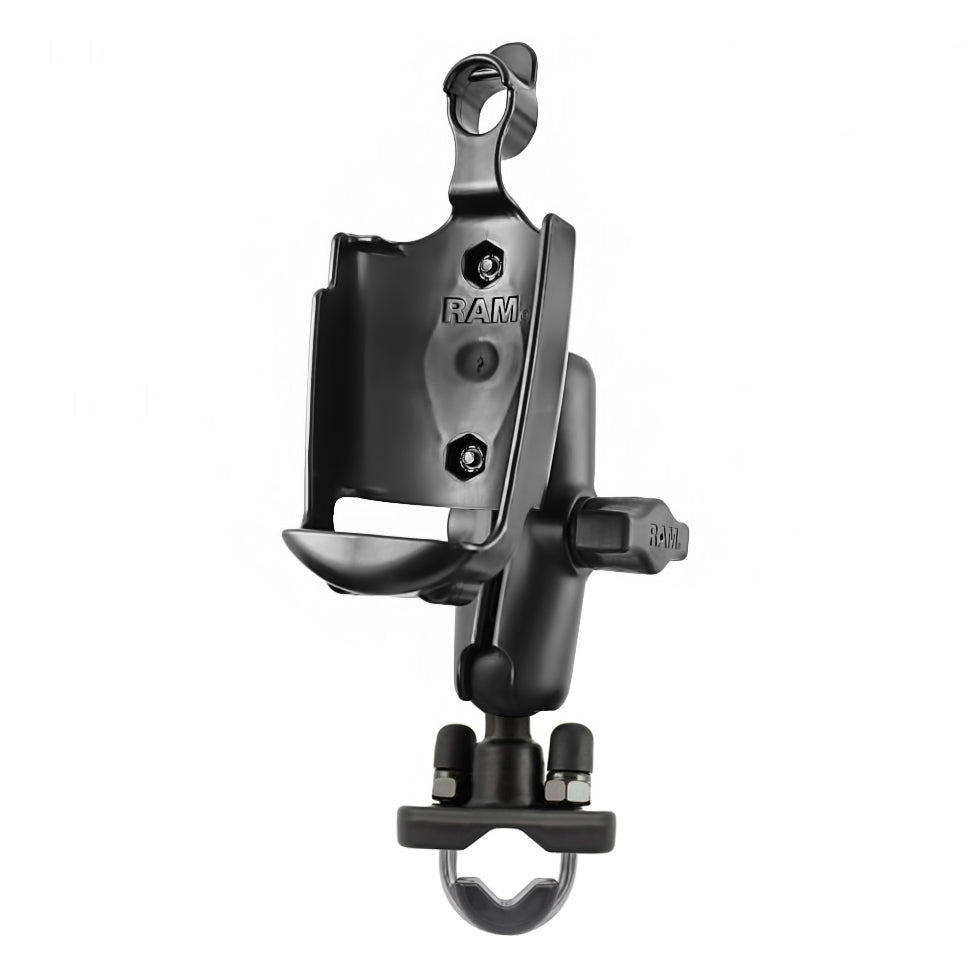

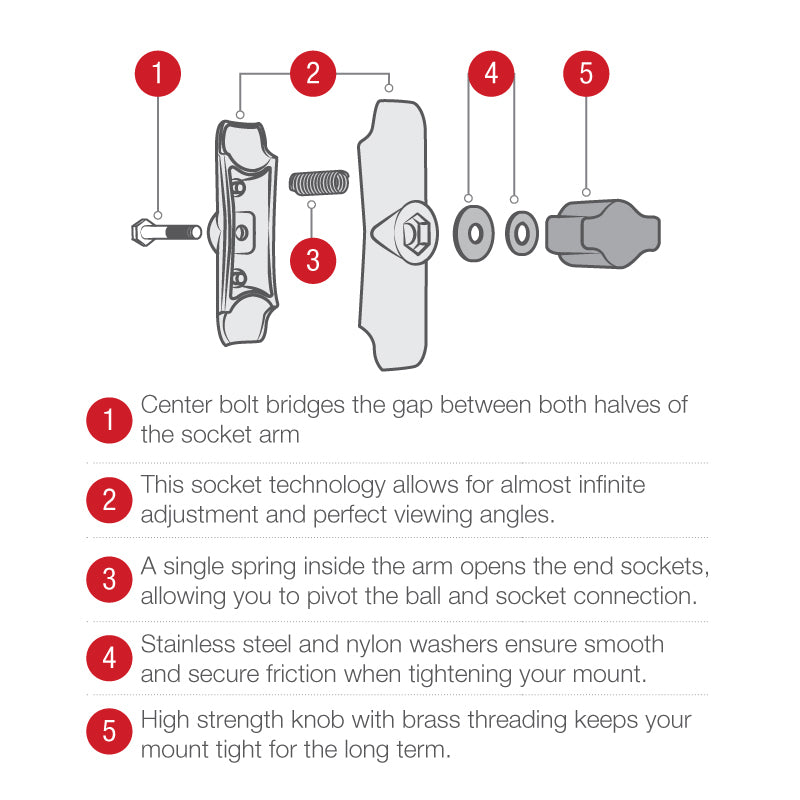

The RAM-B-149-GA20 consists of a stainless steel u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin Rino 520 and 530 series. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP® mount to your optimum viewing position. Included in this package is a GPS safety lanyard clip and hardware that will accommodate rails from 0.50″ to 1″ in diameter.

Additional information

Weight 0.54 lbs
Dimensions 15 × 8 × 4 in
hardware included

Assembly Hardware, (1) 1/4"-20 U-Bolt for .5" – 1" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs, Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum, High strength composite

packaging type

Retail Bag

weight

0.54 lb

components

RAM-HOL-GA20U, RAM-B-149U

clamp range

.5" – 1" diameter
