$122.99

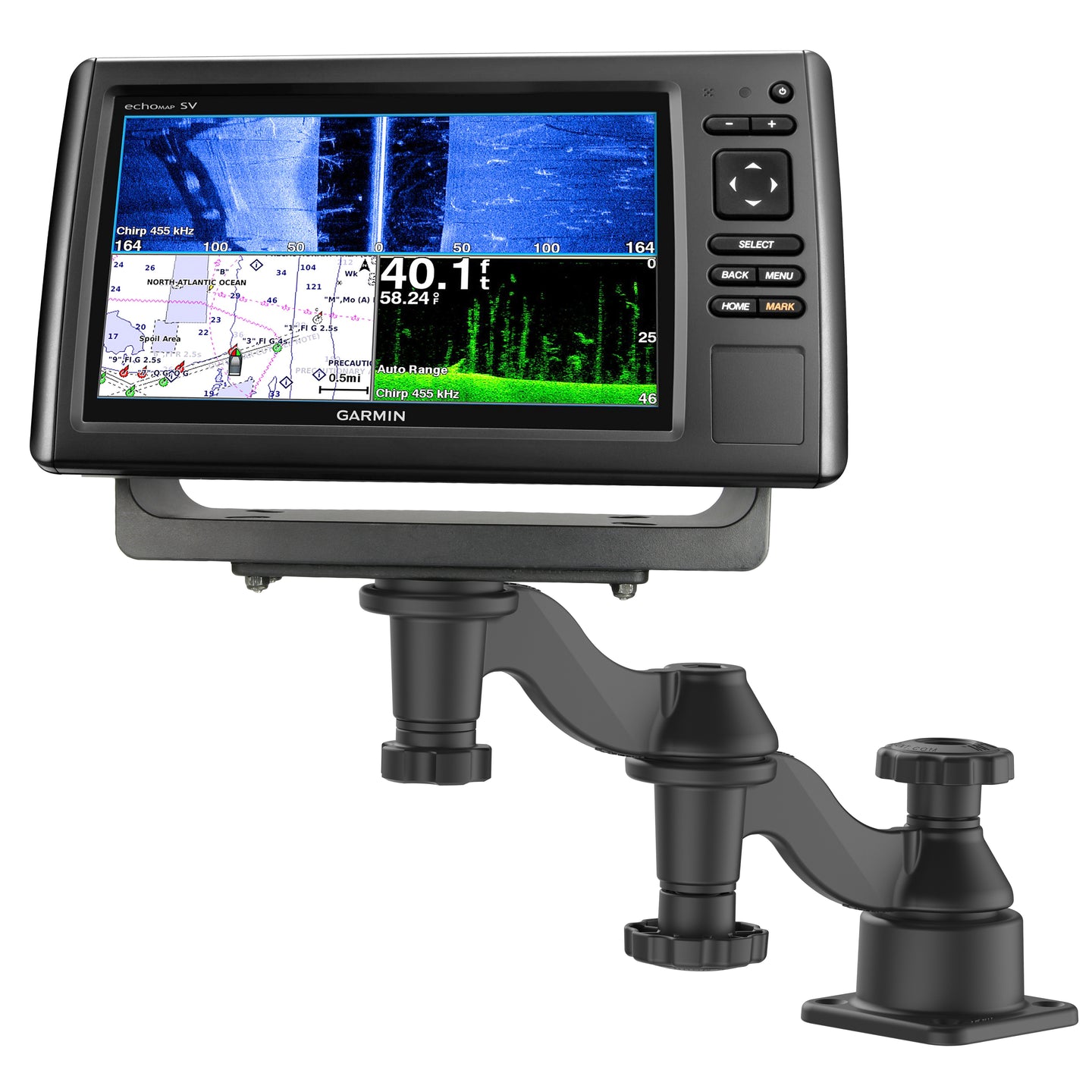

The RAM double swing arm mount includes two 6″ long bent swing arms mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25 x 2″ top base. The pivoting points of the mount allow a complete 360 degree rotation.
| Weight | 3.4 lbs |
|---|---|
| Dimensions | 15 × 14 × 4 in |
| product dimensions | Overall Height: 8.58", Total Swing Arm Length: 12" |
| hole pattern | Top Plate: See Drawing, Bottom Plate: 2.5" x 2.5" |
| plate size | Top Plate: 6.25" x 2", Bottom Plate: 3.47" x 3.47" |
| weight capacity | 8 lbs |
| materials | Marine-grade aluminum |
| packaging type | Poly Bag |
| weight | 2.6 lb |
| components | RAM-109H-BU, RAM-109-1APU, RAM-109-1AU, RAM-111BTU |
