$147.99

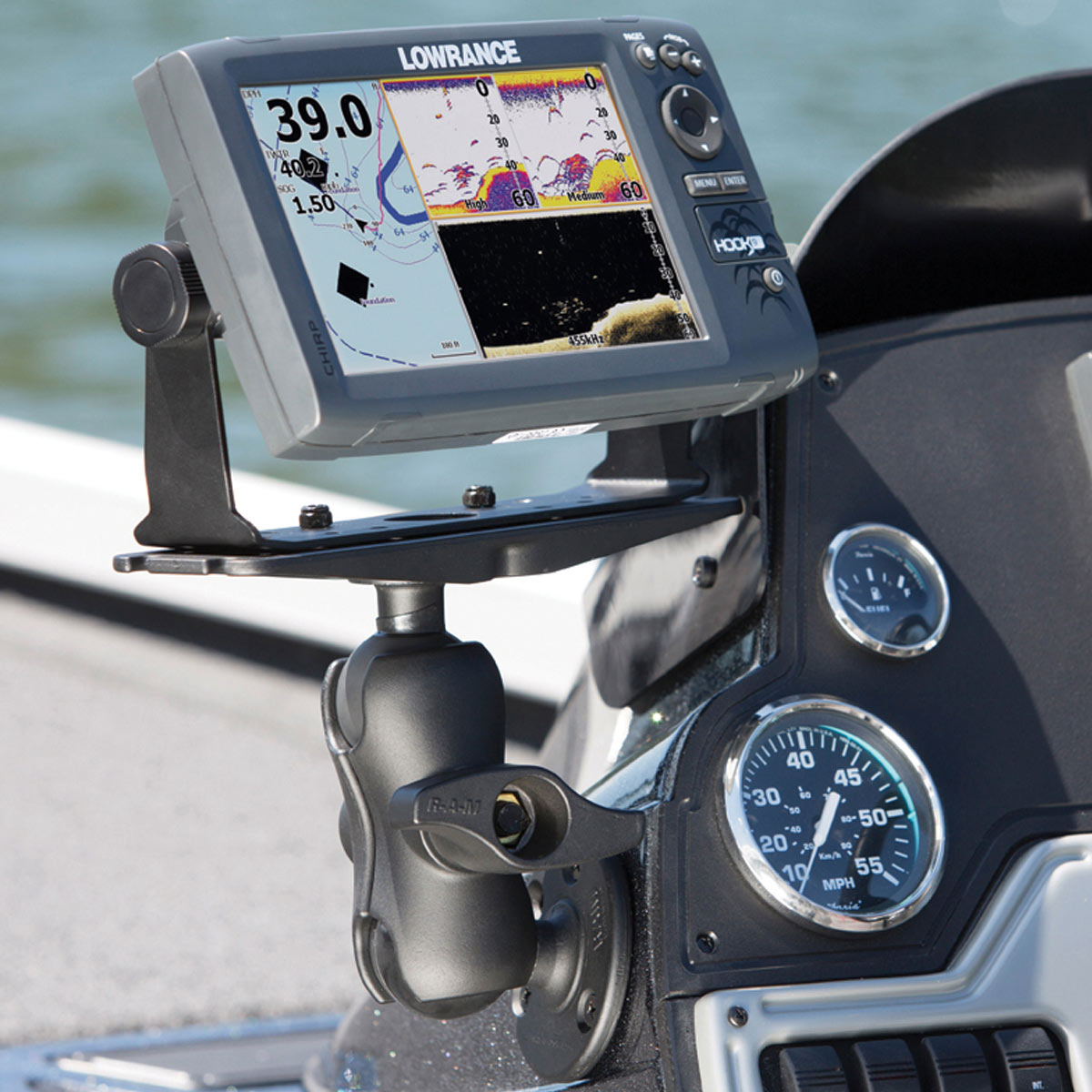

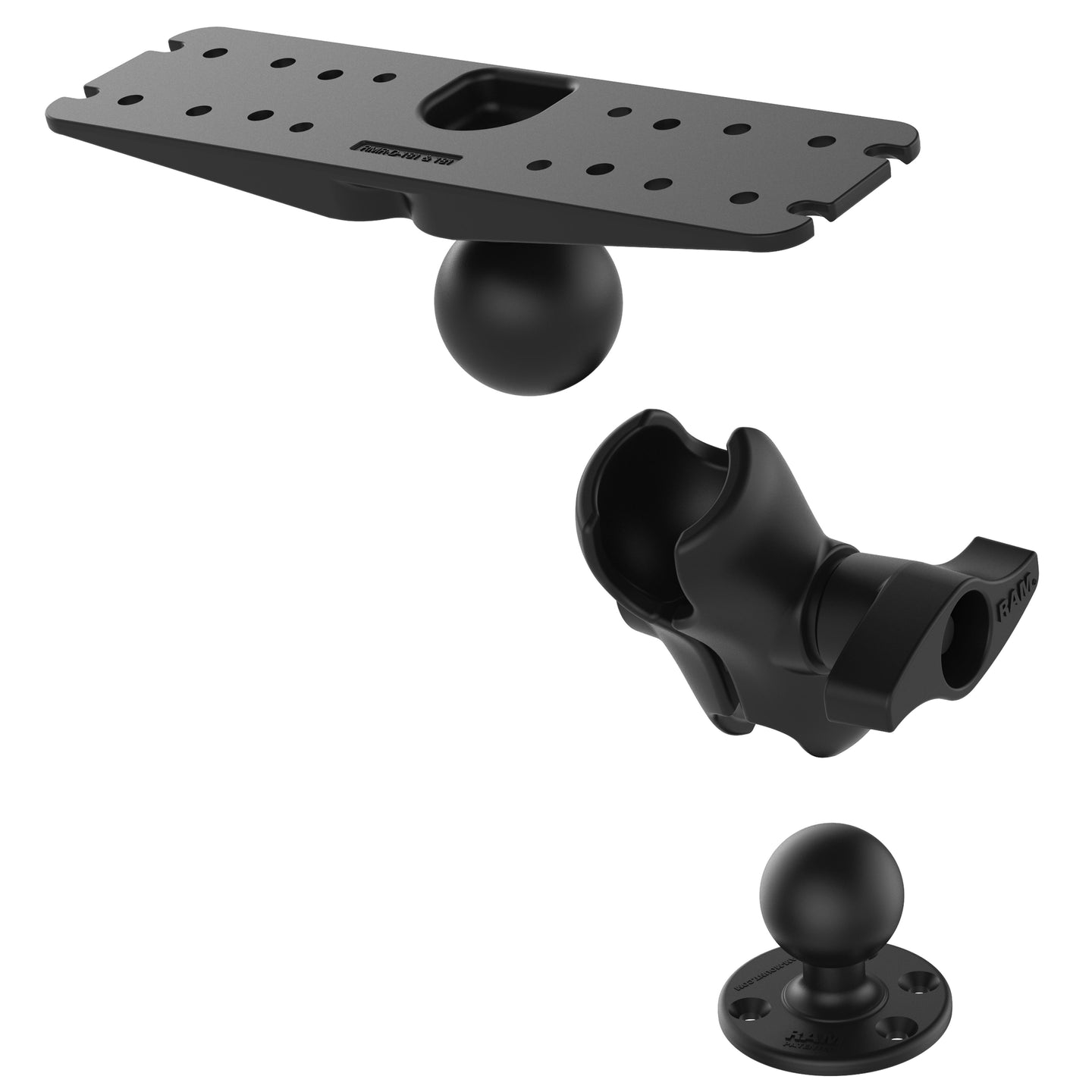

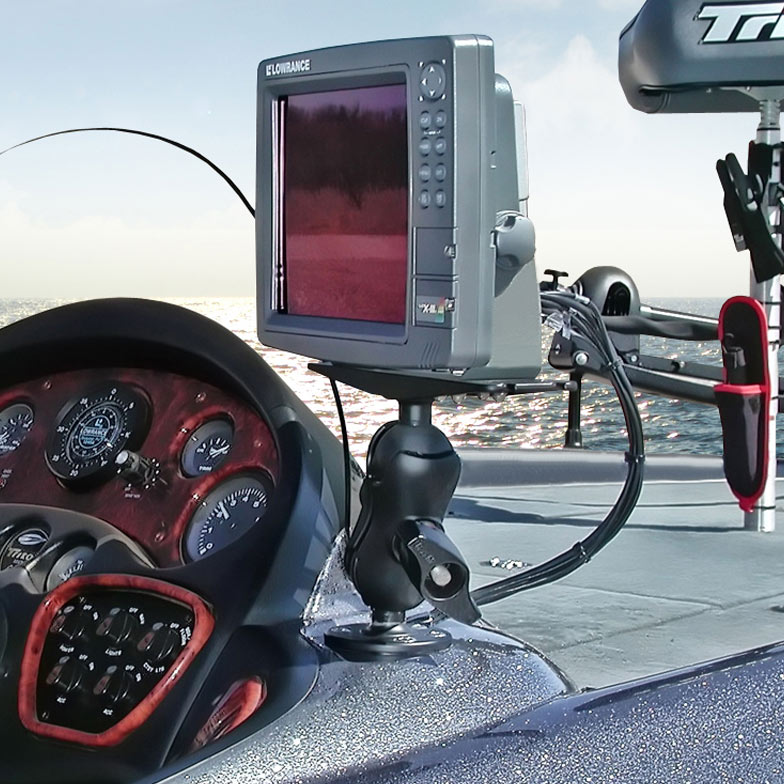

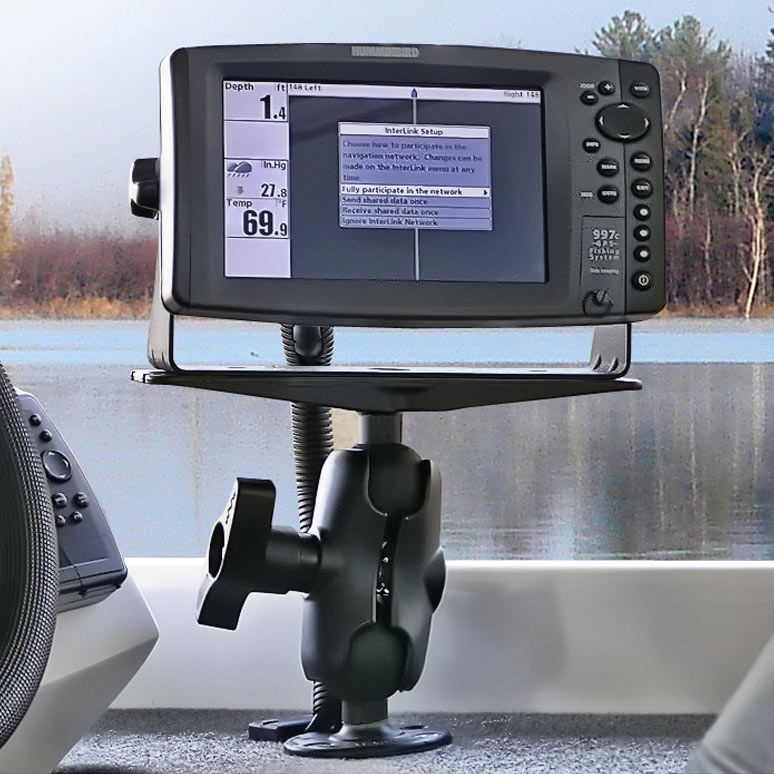

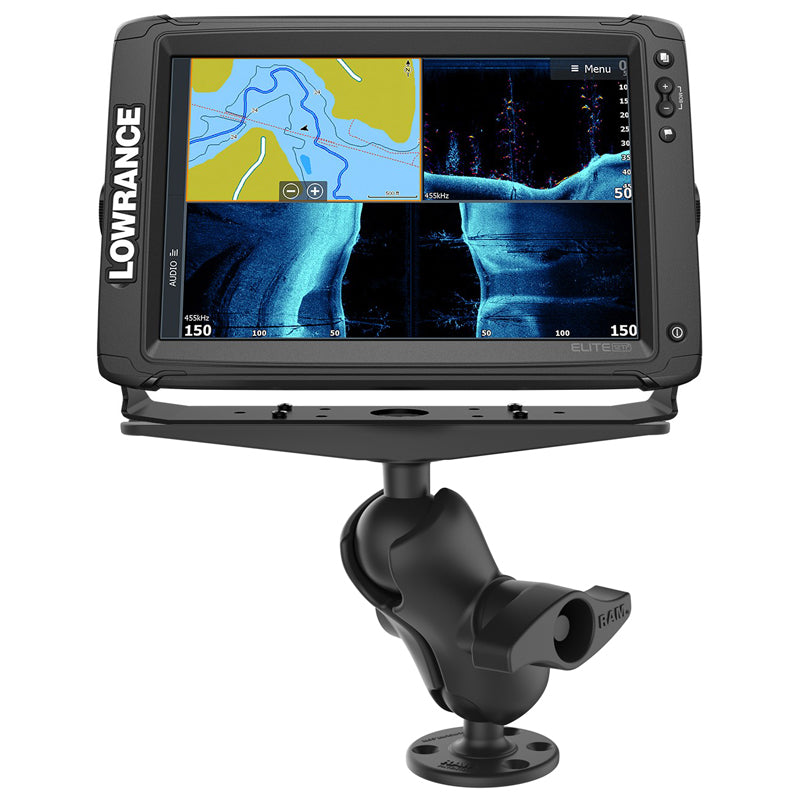

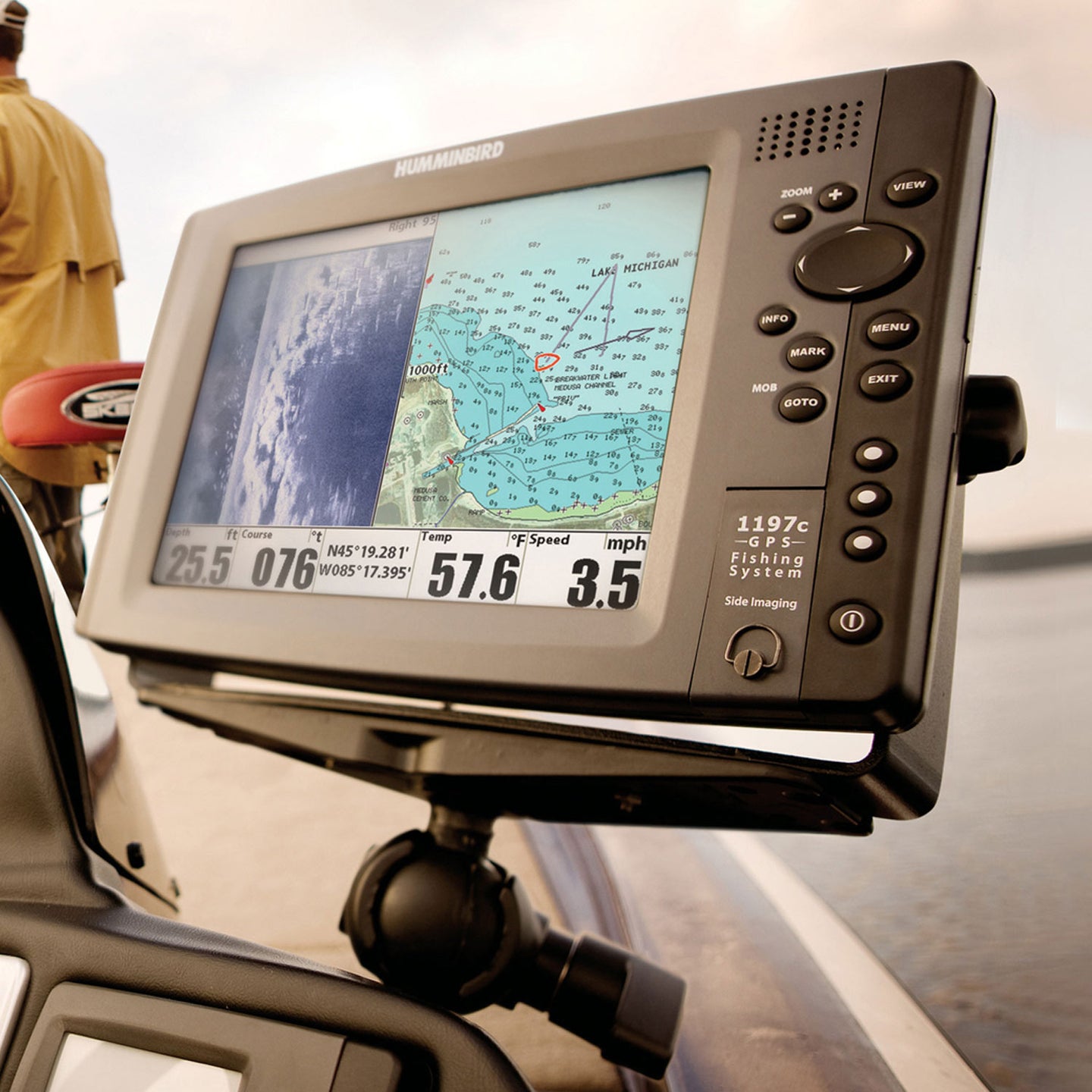

The RAM-D-111U-C consists of a short double socket arm, 3.68″ diameter round base, and 11″ x 3″ rectangle base. The round base includes a 2.25″ D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25″ D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters.
| Weight | 3.58 lbs |
|---|---|
| Dimensions | 3.7 × 11 × 8.1 in |
| hardware included | (4) .312" x .187" Shoulder Washers |
| socket to socket length | 3.6" |
| hole pattern | See Drawings |
| plate size | Top Plate: 3" x 11", Bottom Plate: 3.68" Diameter |
| ball size | D Size (2.25") |
| weight capacity | Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs |
| materials | Marine-grade aluminum |
| packaging type | Poly Bag |
| weight | 3.58 lb |
| components | RAM-D-202U, RAM-D-201U-C, RAM-D-111BU |

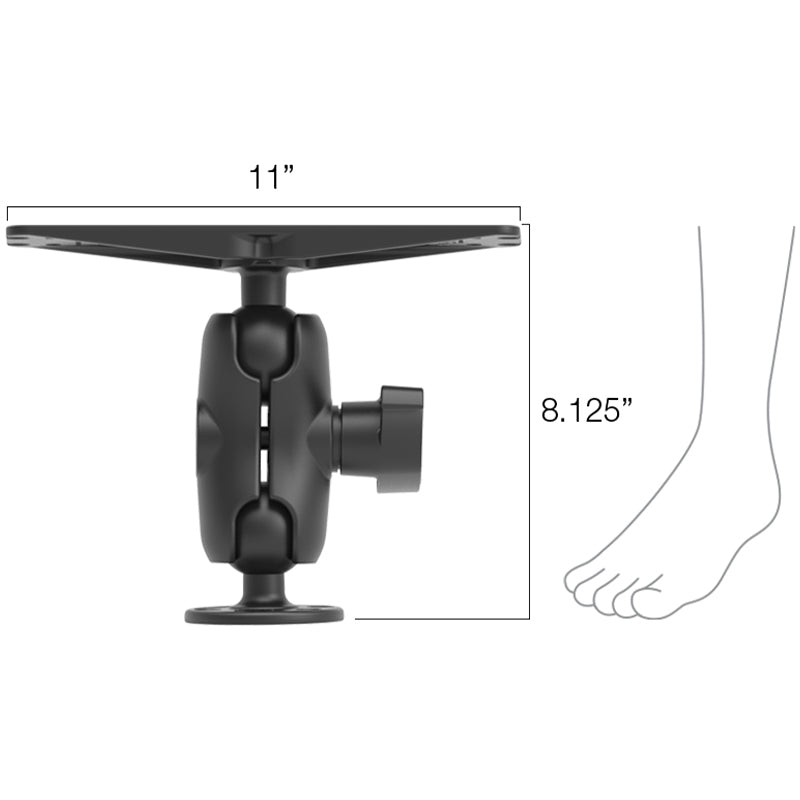

| product dimensions | Overall Length: 8.125" |
