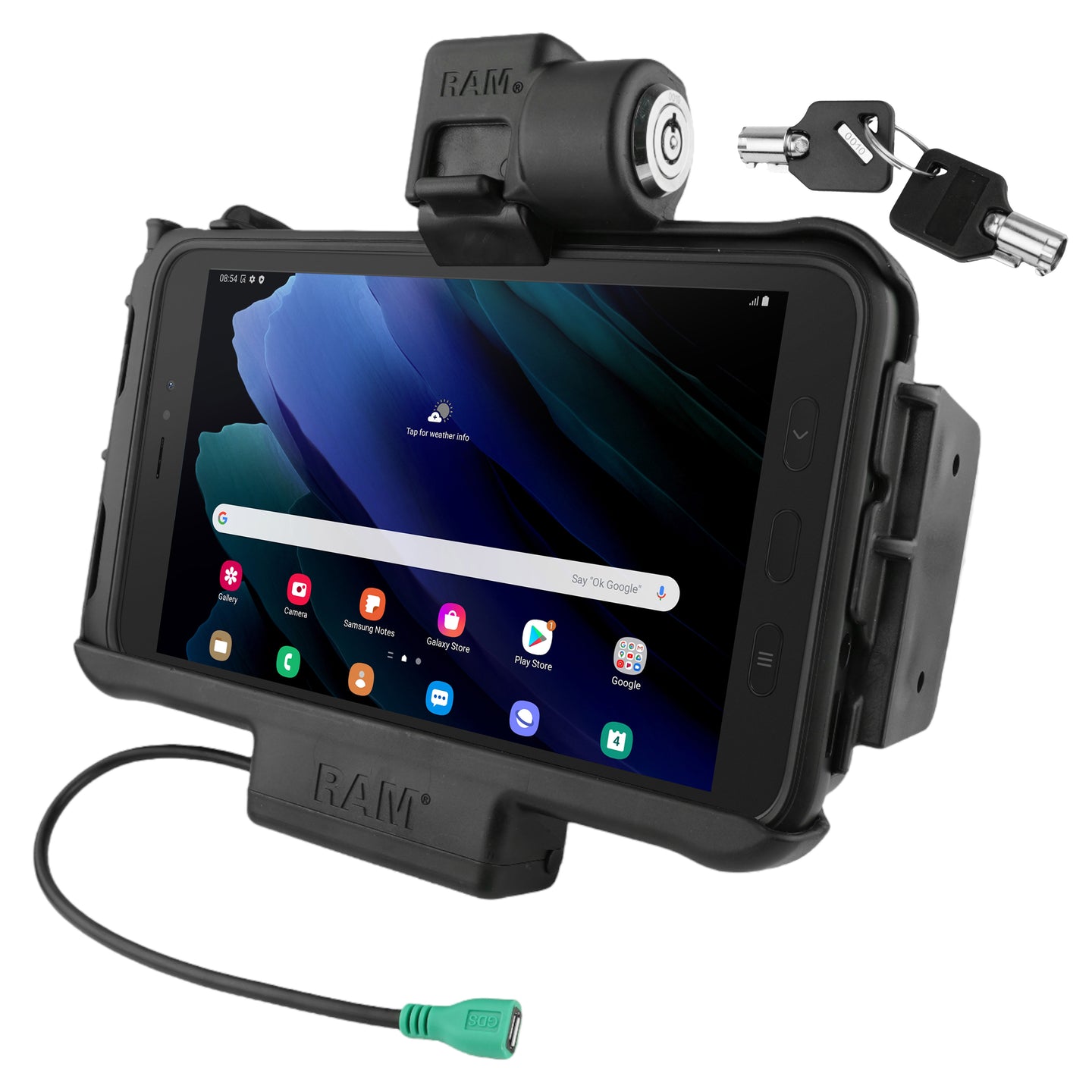

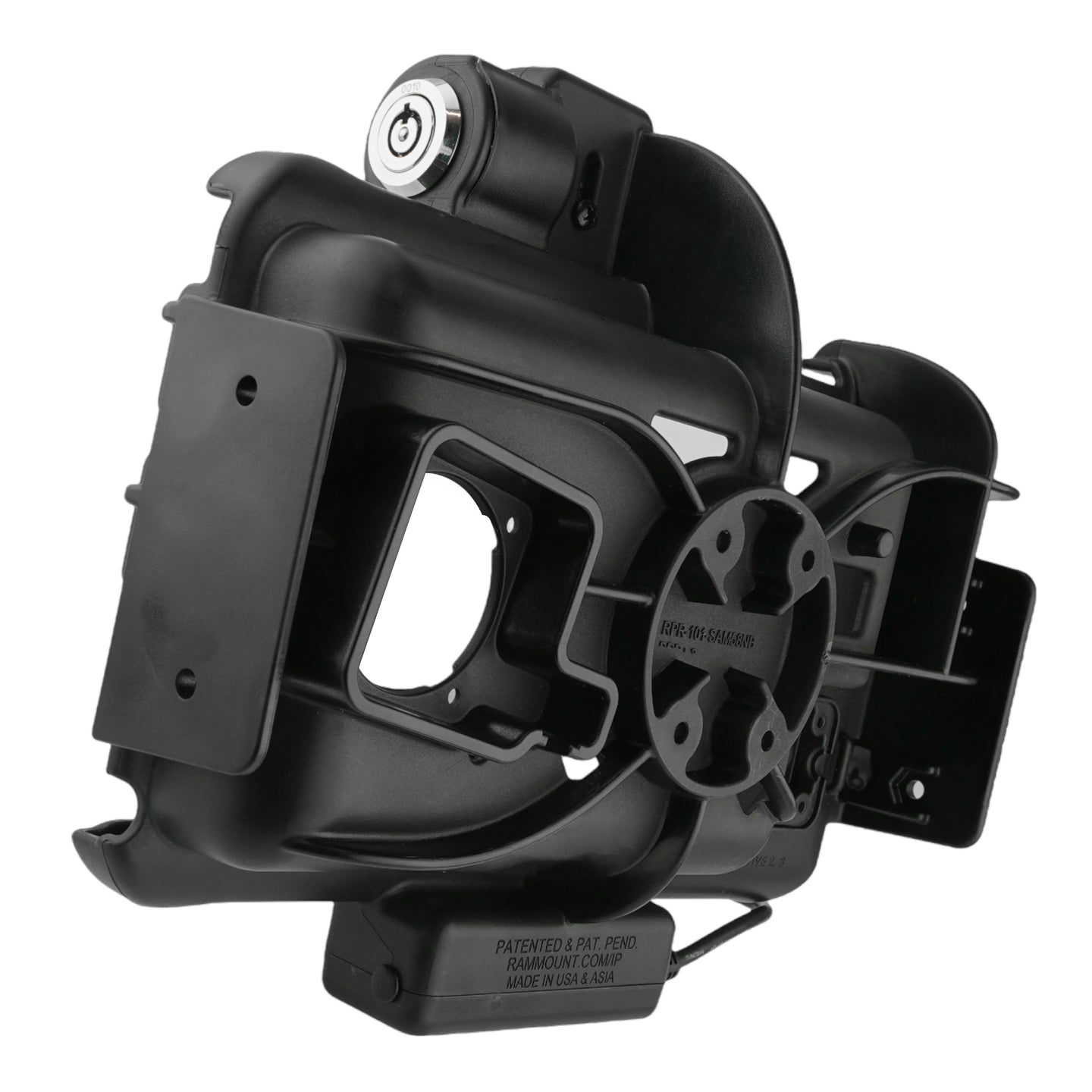

RAM® Locking Modular Powered Dock for Samsung Tab Active3

SKU RAM-HOL-SAM58PKLNU Category Tag

$150.99

Features

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active3; provides charging through an integrated pogo pin connection and mUSB cable
  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty

Description

The RAM® Locking Modular Powered Dock for Samsung Tab Active3 (RAM-HOL-SAM58PKLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active3’s pogo pad docking contacts—simply dock the device for a seamless charging experience. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties.

Additional information

hardware included

(2) Keys, (4) #8-32 x 5/8" Machine Screws, (4) #8-32 Nylock Nuts, (1) GDS® Genuine USB 2.0 Straight Cable, (1) Optional Cable Clamp Housing, (2) Large Cable Ties, (6) Small Cable Ties

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

weight

1.33 lb

components

RAM-GDS-CAB-MUSB2-1, RAM-GDS-CAB-CLAMP1U

warranty

3 year warranty

input connector

mUSB Female

input cable length

214mm

input voltage

4.4-5.4VDC (USB power source dependent)

output voltage

4.4VDC – 5.4VDC (USB power source dependent)
