RAM® No-Drill™ Mount for ’12-23 RAM 2500-5500 + More

SKU RAM-VB-178A-SW2 Category Tag

$285.99

Features

  • Custom vehicle tablet mount designed specifically for 2012-2023 Ram 2500-5500 trucks

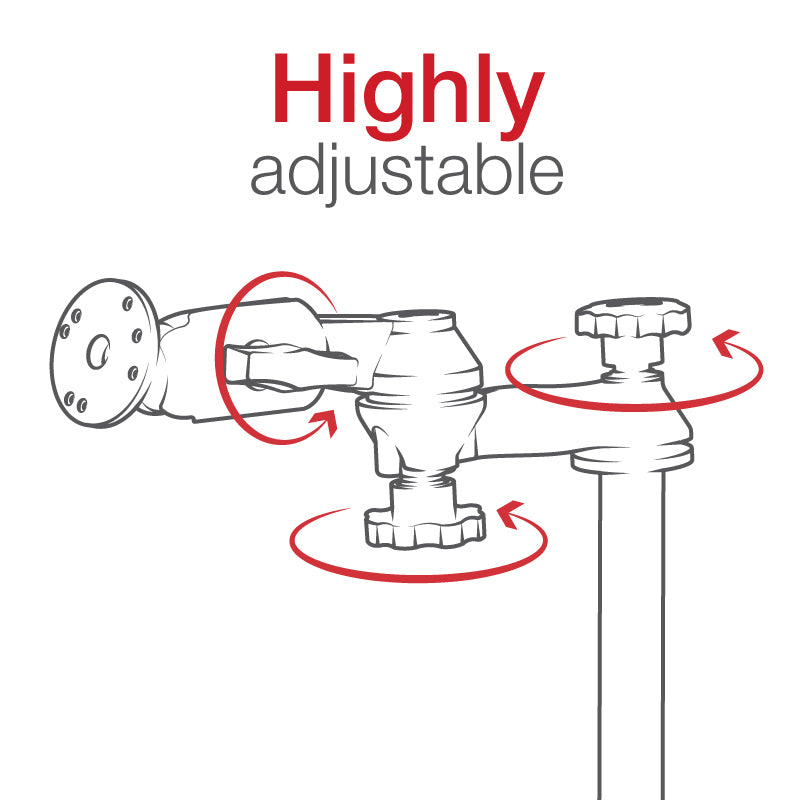

  • Dual articulating swing arms allow for ideal device placement; compatible with a variety of tablet holders and laptop holders
  • Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

Description

This RAM® No-Drill™ mounting system installs quickly and easily into a range of Ram 1500 and Ram 2500 trucks using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Additional information

Weight 14 lbs
Dimensions 20 × 10.5 × 5.25 in
hardware included

Assembly Hardware, (2) M8-1.25 x 60mm Hex Bolts, (2) 3/4" Stand-Offs, (2) 5/16" Flat Washers

hole pattern

4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter, Seat Bolt Distance: 13.25" center to center

plate size

2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs

materials

Powder coated steel, Marine grade-aluminum

packaging type

Box

weight

14.0 lb

components

RAM-VB-178A, RAM-VP-SW1-89
