RAM® No-Drill™ Mount for ’99-16 Ford F-250 – F750 + More

SKU RAM-VB-185-SW2 Category Tag

$270.99

Features

  • RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

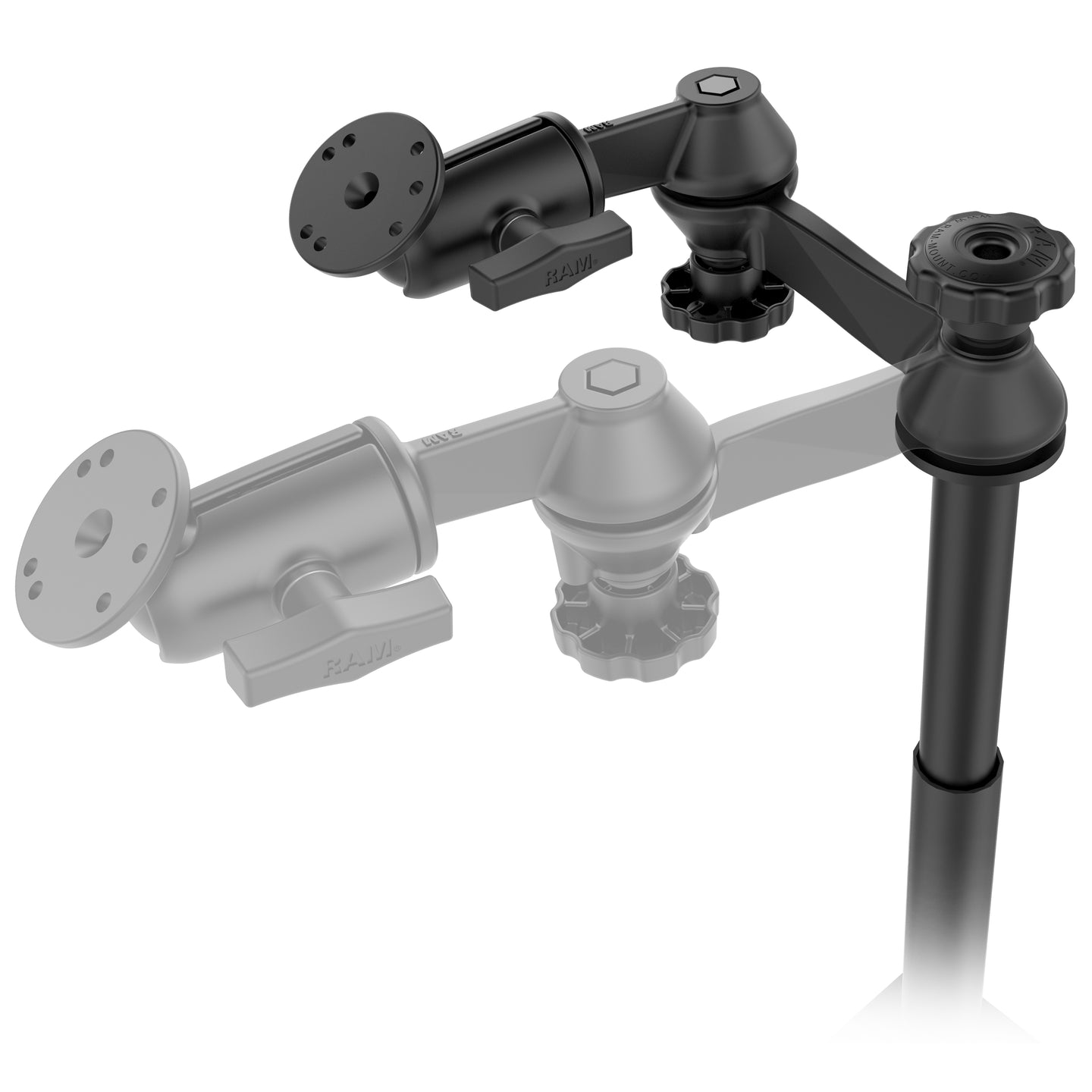

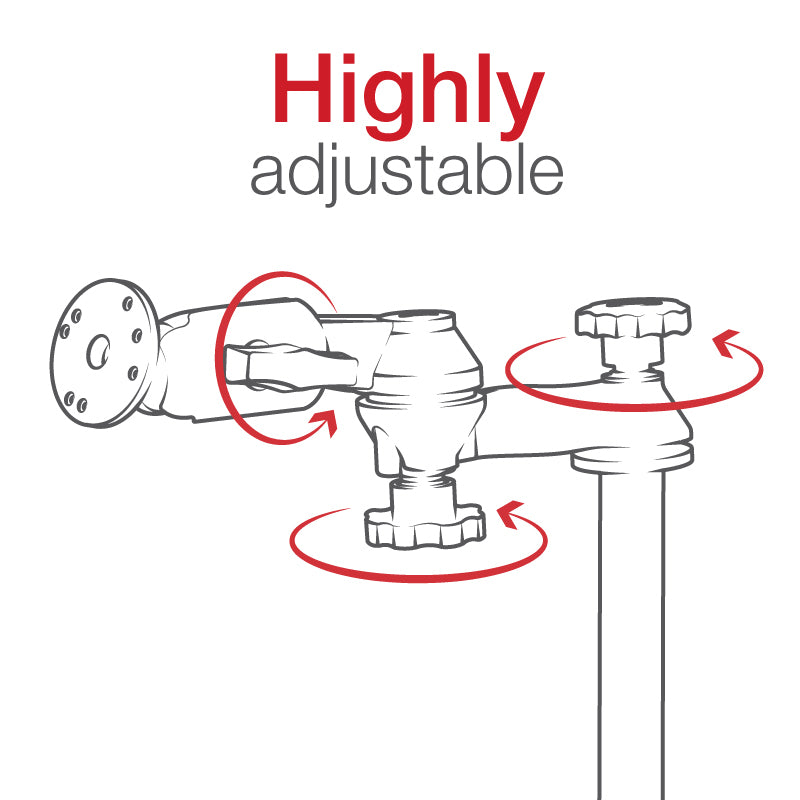

  • Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

Description

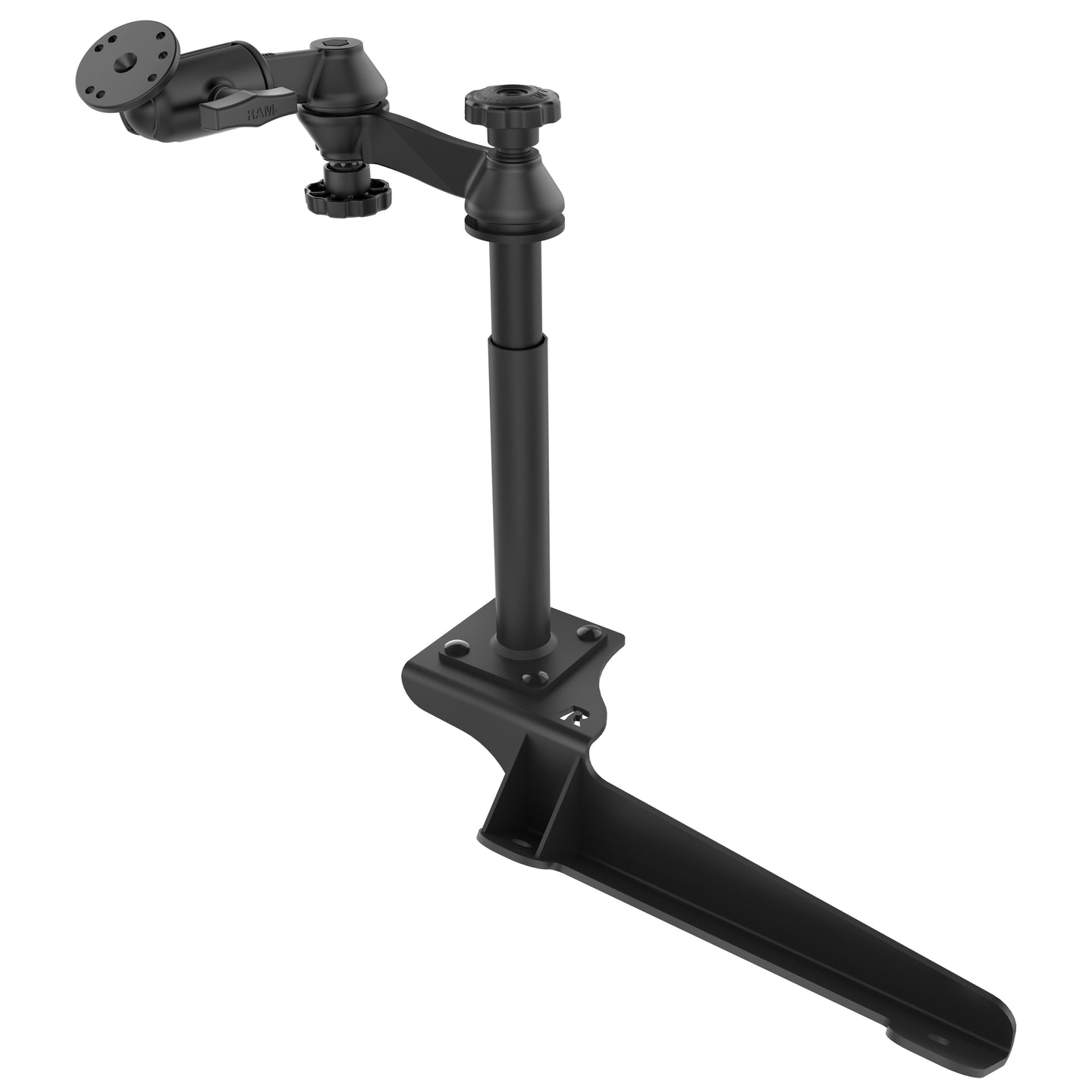

This RAM® No-Drill™ mounting system installs quickly and easily into a range of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Additional information

Weight 14.05 lbs
Dimensions 20.5 × 11.1 × 6.5 in
hardware included

Assembly Hardware, (2) M12-1.75 x 100mm Hex Bolts, (2) M12-1.75 x 60mm Hex Bolts, (2) M12 Lock Washers, (2) 3/8" Stand-Offs, (2) 1" Stand-Offs

hole pattern

4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter, Seat Bolt Distance: 11.5" center to center

plate size

2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs

materials

Powder coated steel, Marine grade-aluminum

packaging type

Box

weight

15.0 lb

components

RAM-VB-185, RAM-VP-SW1-89
