$52.49

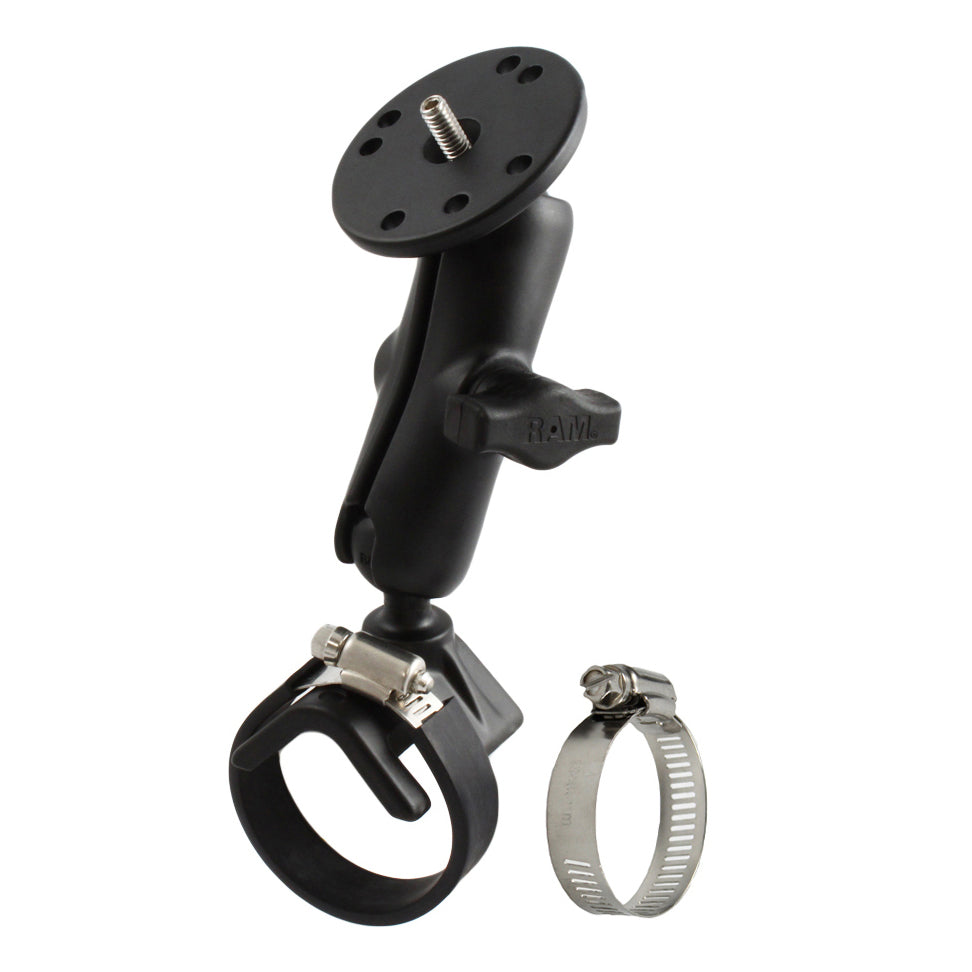

The RAM-B-108U-BIT1 consists of a medium length B-size arm with a 2.5″ diameter round plate with universal AMPS hole pattern with a removeable 1/4″-20 threaded post on one side and a strap clamp base for rails from 1″ to 2.1″ in diameter on the other.
| Weight | 0.68 lbs |
|---|---|
| Dimensions | 12 × 6 × 3 in |
| socket to socket length | 3" |
| hole pattern | 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter |
| plate size | 2.5" Diameter |
| ball size | B Size (1") |
| weight capacity | Standard Use: 2 lbs, Heavy-Duty Use: 1 lb |
| materials | Marine-grade aluminum |
| packaging type | Poly Bag |
| weight | 0.68 lb |
| components | RAM-B-108BU, RAM-B-201U, RAM-B-202AU |
| hardware included | (1) #20 Worm Drive Strap Clamp, (1) #28 Worm Drive Strap Clamp, (1) 6" Rubber Strip |
| clamp range | 1" – 2.1" diameter |
| thread pitch | 1/4"-20 x .25" |
