$42.49

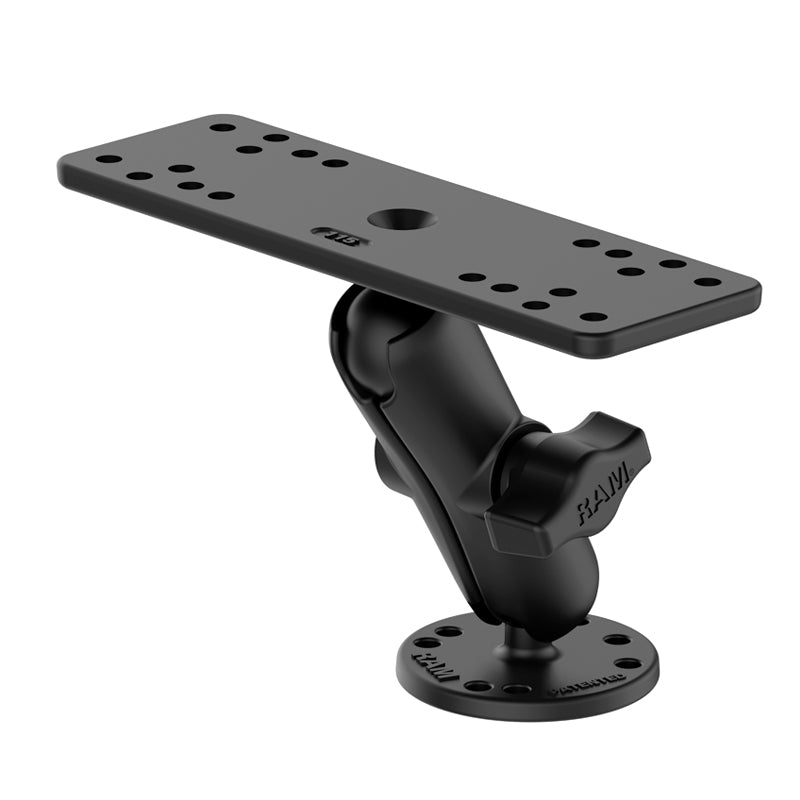

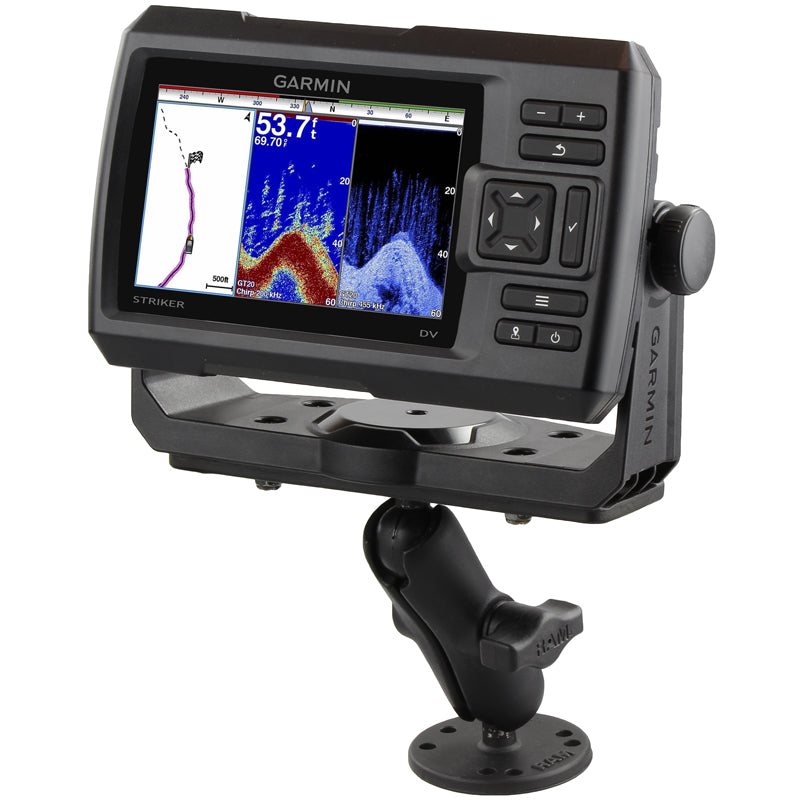

The RAM-B-111U consists of a medium double socket arm, 2.5″ diameter round base, and 6.25″ x 2″ rectangle base. The round base includes a 1″ B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1″ B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 12 × 6 × 3 in |
| product dimensions | Overall Height: 5" |
| socket to socket length | 3" |

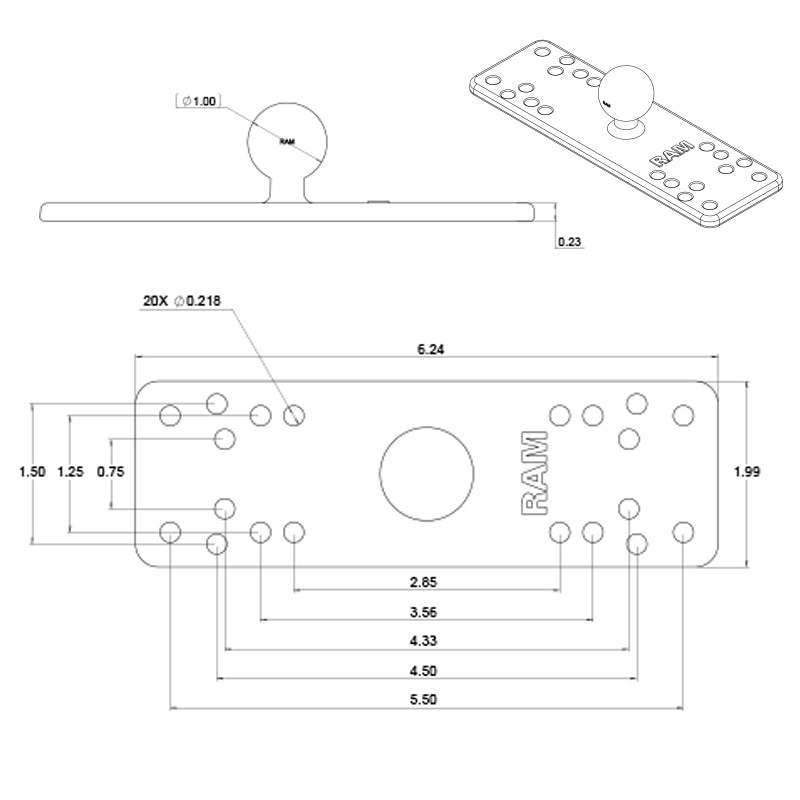

| hole pattern | 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter, See Drawing |
| plate size | Top Plate: 6.25" x 2.5", Bottom Plate: 2.5" Diameter |
| ball size | B Size (1") |
| weight capacity | Standard Use: 2 lbs, Heavy-Duty Use: 1 lb |
| materials | Marine-grade aluminum |
| packaging type | Poly Bag |
| weight | 0.71 lb |
| components | RAM-B-111BU, RAM-B-201U, RAM-B-202U |
