RAM® X-Grip® Double U-Bolt Mount

SKU RAM-101U-235-UN7 Category Tag

$97.49

Features

  • Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Included C size 1.5″ RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Description

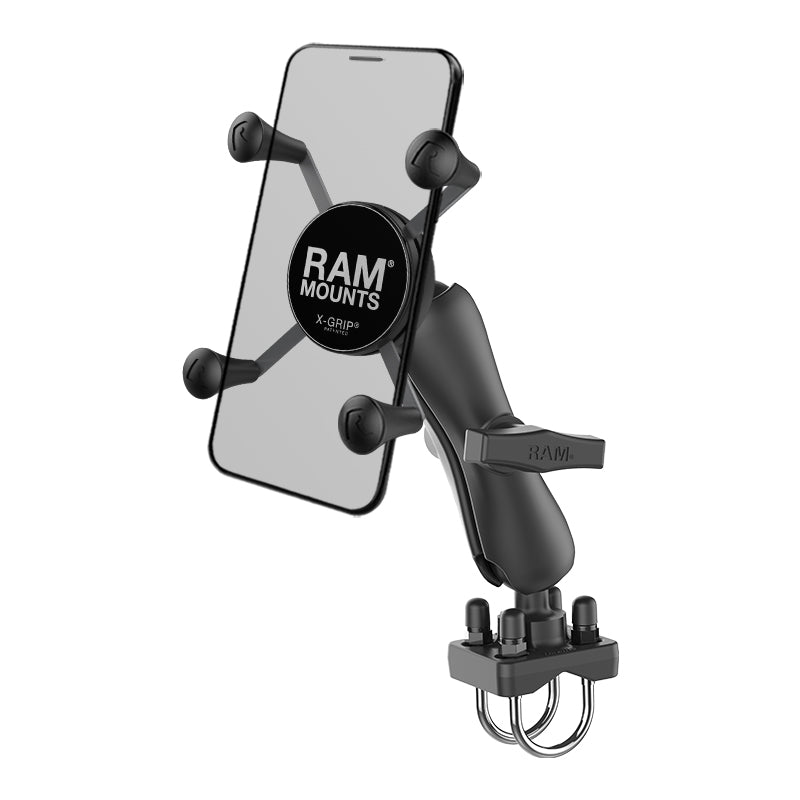

The RAM-101U-235-UN7 consists of a double u-bolt base, 6 inch double socket arm and universal X-Grip® cradle. Included in this package is hardware that will accommodate rails from 1″ to 1.25″ in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1.5″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today’s vehicles, the RAM X-Grip® is the cell phone cradle evolved.

Additional information

Weight 1.33 lbs
Dimensions 15 × 8 × 4 in
socket to socket length

4.66"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum, High strength composite, Stainless steel

packaging type

Poly Bag

weight

1.33 lb

components

RAM-HOL-UN7BCU, RAM-201U, RAM-235U

hardware included

(1) Optional Tether, (1) Glue Tube for Rubber Caps, (2) 1/4"-20 U-Bolts for 1" – 1.25" Rails, (4) 1/4"-20 Nylock Nuts, (4) Rubber Caps

clamp range

1" – 1.25" diameter

holder dimensions

Width Range: 1.875" – 3.25", Depth Range: .875" max
